ZZ3253M3641

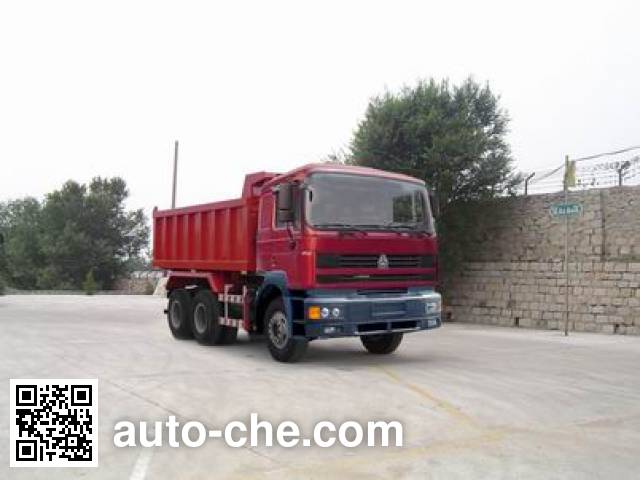

Sida Steyr Chinese dump truck (tipper truck) ZZ3253M3641 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak Huanghe
Technical Specifications of the China dump truck Sida Steyr Vehicle Overview Engine of the China dump truck Sida Steyr ZZ3253M3641 Engine Specifications of the China dump truck Engine Model WD615.62 / WD615.62 / WD615.87 / WD615.87 Engine displacement (cc) 9726 / 9726 / 9726 / 9726 Engine power (kW) 196 / 196 / 213 / 213
Dimensions and Weights of the China dump truck Sida Steyr ZZ3253M3641 Dimensions and Weight Specifications of the China dump truck Overall Dimensions of the China dump truck Overall length (mm) 8214 Overall width (mm) 2490 Overall height (mm) 3280/3496 Cargo Body Dimensions Cargo body length (mm) 5400 Cargo body width (mm) 2300 Cargo body height (mm) 1200/1500 Weights, Ground Pressure Curb weight of the China dump truck (kg) 12150, 12350 Gross vehicle weight (kg) 25000 Load factor (payload to weight ratio) 1.02 Axle load distribution (kg) 7000/18000 (tandem axle) Wheel Base Wheelbase (mm) 3600+1300, 3600+1350 Front and Rear Overhang Front overhang (mm) 1525 Rear overhang (mm) 1789, 1739 Angle of Approach and Departure Angle of approach (deg.) 29 Angle of departure (deg.) 30
Wheels and Tires Tires and Wheels of the China dump truck Sida Steyr ZZ3253M3641 Number of axles 3
Misc. Specifications Miscellaneous Specifications Sida Steyr ZZ3253M3641 (dump truck) Max. speed 76 Cab seating capacity 2 Steering steering wheel
Additional Information The car optional environmental lidded containers, cargo box cover quality 300kg.(Note: possible inaccuracies)
