Sinotruk Howo Chinese dump truck (tipper truck) ZZ3257N4647C1 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3257N4647C1 chassis. With ABS, tires are 11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 16PR, max. speed is 75 km/h, cargo body is 6800/6500 × 900 × 2300 mm, curb weight is of the China dump truck 12270, 12500 kg, rated capacity is 12600, 12370 kg, engine: WD615.95 / WD615.96 / WD615.95E / WD615.96E / WD615.95C / WD615.96C / D12.34-30 / D12.38-30 / WD615.95NE / WD615.96NE, gross vehicle weight is 25000 kg, wheelbase is 4625+1350, 4625+1400 mm.
Technical Specifications of the China dump truck Sinotruk Howo

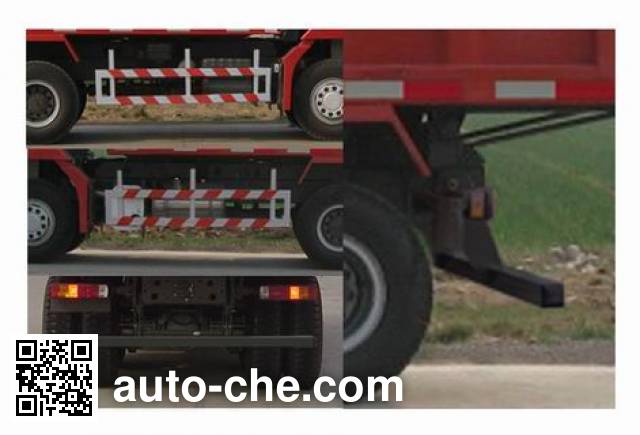

Cargo box dump mode after unloading. Curb weight was quality without cover and with the cover when. Car optional environmental lidded container, cover the quality of 230kg.Car and car long long correspondence. When the optional 6500mm cargo compartment, the vehicle rear overhang corresponding to 2050mm optional second-class car chassis, 10 / - leaf spring, after corresponding with a wheelbase of 4625 + 1400,6800mm Compartment suspension is 2245mm;. 6500mm cargo compartment rear overhang is 2000mm. When the containers before the move, the vehicle height is 3450mm.Side guards made of material used Q235A, bolted connections; the rear guard of the materials made of Q235A, bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance (Note: possible inaccuracies)

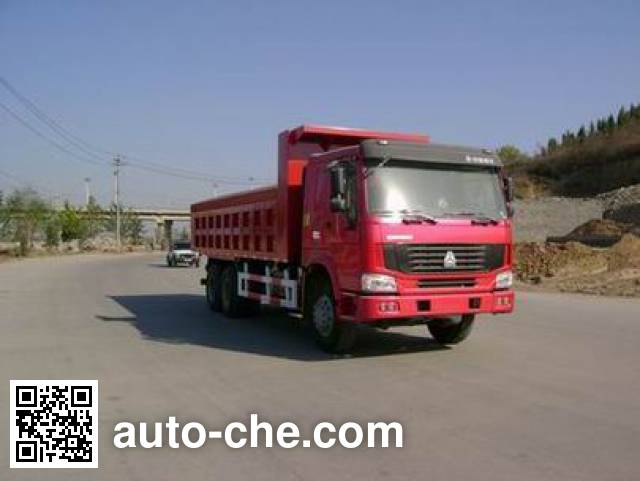

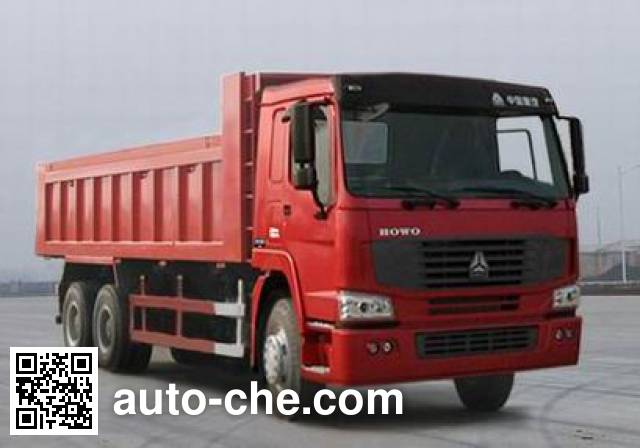

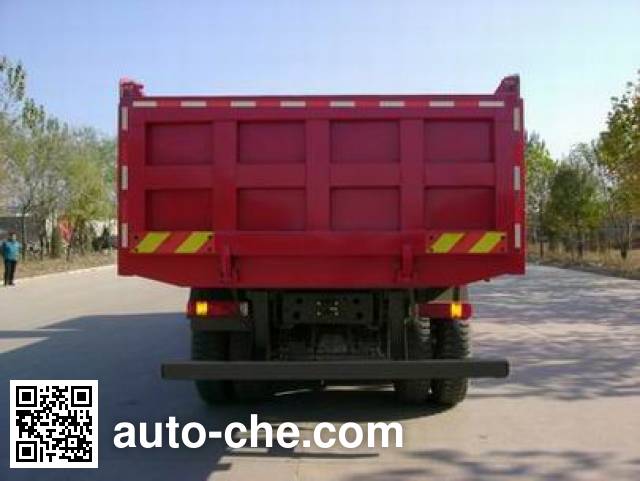

Photo gallery of the China dump truck Sinotruk Howo ZZ3257N4647C1
