Sida Steyr Chinese dump truck (tipper truck) ZZ3251N4641E1L manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3251N4641E1L chassis. With ABS, cargo body is 6400 × 1035 × 2300 mm, tires are 11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 16PR, environmental standard is GB17691-2005 National V / Euro 5, GB18285-2005, GB11340-2005, max. speed is 82 km/h, rated capacity is 12440 kg, cab seating capacity is 2, wheelbase is 4550+1350 mm, total mass of trailer is 21600, 24000 kg, natural gas, engine: T10.32-50 / T10.34-50, gross vehicle weight is 25000 kg, curb weight is of the China dump truck 12430 kg.
Technical Specifications of the China dump truck Sida Steyr
Compartment dump mode after unloading. When the optional ordinary and semi-high roof cab, the vehicle height is 3450mm; when the optional high roof cab, the vehicle height is 3700mm. Optional cargo box appearance of the structure, the optional environmental cover. T10.32-50 engine corresponding to the total mass of quasi-trailer 21600kg, engine T10.34-50 corresponding to the total mass of quasi-trailer 24000kg. Side guards made of material used Q235A, connections bolted; the rear guard of the materials is made of Q235A, bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. ABS system model 4460046300, producers of WABCO Vehicle Control Systems (China) have (Note: possible inaccuracies)

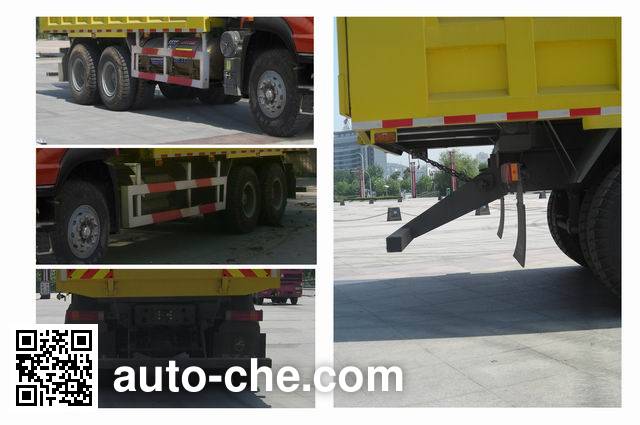

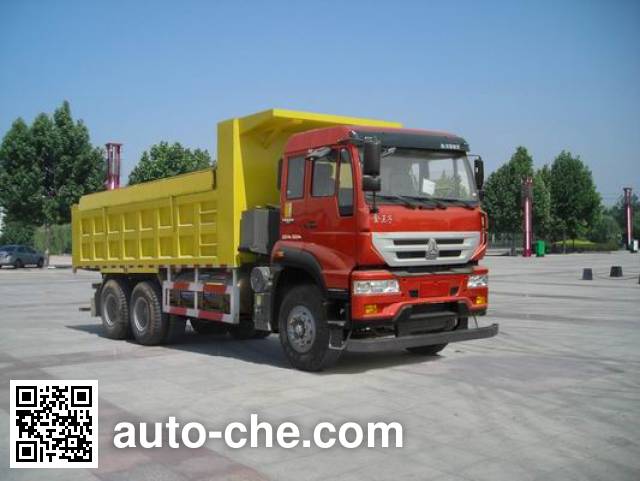

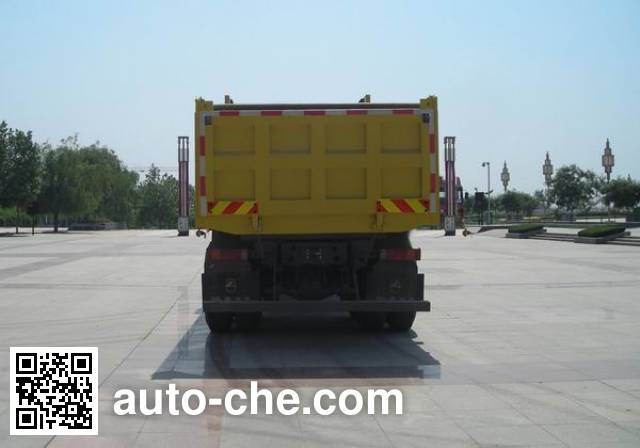

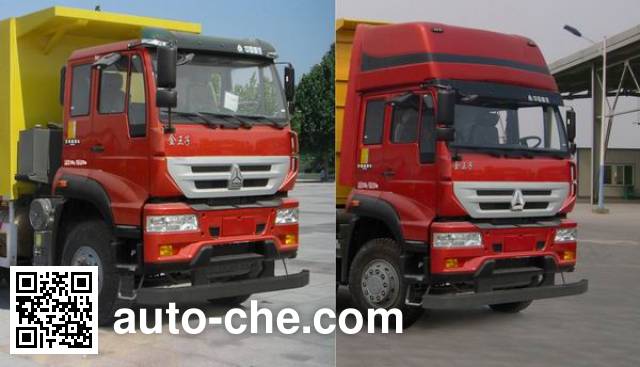

Photo gallery of the China dump truck Sida Steyr ZZ3251N4641E1L
