howo concrete mixer truck

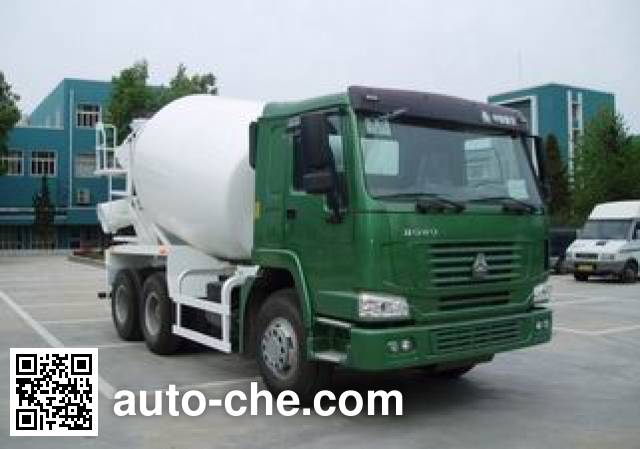

Sinotruk Howo ZZ5257GJBM3841W concrete mixer truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo concrete mixer truck ZZ5257GJBM3841W

ZZ5257GJBM3841W

Sinotruk Howo Chinese concrete mixer truck (cement mixer) ZZ5257GJBM3841W manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including concrete mixer trucks (cement mixers)); the concrete mixer truck (cement mixer) based on ZZ1257M3841W chassis. Max. speed is 90, 102 km/h, curb weight is of the China mixer truck 13220, 14180 kg, gross vehicle weight is 25000 kg, engine: WD615.62 / WD615.62 / WD615.87 / WD615.87, cab seating capacity is  2, wheelbase is 3825+1350, 3800+1400, 3975+1350 mm.

Technical Specifications of the China mixer truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ5257GJBM3841W
Vehicle typeConcrete mixer truck (cement mixer)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1257M3841W

Engine of the China mixer truck Sinotruk Howo ZZ5257GJBM3841W

Engine Specifications of the China mixer truck
Engine ModelWD615.62 / WD615.62 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)196 / 196 / 213 / 213

Dimensions and Weights of the China mixer truck Sinotruk Howo ZZ5257GJBM3841W

Dimensions and Weight Specifications of the China mixer truck
Overall Dimensions of the China mixer truck
Overall length (mm)9040/9800
Overall width (mm)2496
Overall height (mm)3850/3960
Weights, Ground Pressure
Curb weight of the China mixer truck (kg)13220, 14180
Gross vehicle weight (kg)25000
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)3825+1350, 3800+1400, 3975+1350
Front/rear overhang (mm)1500/2365, 1500/2340, 1500/2975
Angle of approach/departure (deg.)16/24, 16/18

Wheels and Tires

Tires and Wheels of the China mixer truck Sinotruk Howo ZZ5257GJBM3841W
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ5257GJBM3841W (concrete mixer truck)
Max. speed90, 102
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car was stirred tank volume of 5.0 m3.Only two types of optional car chassis China National Heavy Duty Truck WD615.87 or WD615.62 engines. When the optional chassis wheelbase 3975 +1350, Overall length 9800mm, height 3960mm, curb weight 14180kg, payload 10690kg, rear overhang 2975mm, departure angle of 18 degrees.
(Note: possible inaccuracies)
