Sinotruk Hohan Chinese concrete mixer truck (cement mixer) ZZ5255GJBN4346D2L manufactured by Sinotruk Jining Commercial Vehicle Co., Ltd. (a manufacturing enterprise in Jining, Shandong Province, China; manufactures a range of Sinotruk Hohan, Sinotruk Hania vehicles, including concrete mixer trucks (cement mixers)); the concrete mixer truck (cement mixer) based on ZZ1255N4346D2L chassis. Curb weight is of the China mixer truck 14170 kg, engine: T10.32-40 / T10.34-40 / T12.34-40 / T12.38-40, gross vehicle weight is 25000 kg, with ABS, rated capacity is 10700 kg, environmental standard is , cab seating capacity is 2, max. speed is 90 km/h, tires are 11.00-20, 11.00R20 16PR, 12.00-20 16PR, 12.00R20 14PR, liquefied natural gas, wheelbase is 4325+1350 mm.
Technical Specifications of the China mixer truck Sinotruk Hohan
The car was stirred tank volume of 5.0 cubic meters. Vehicle length and rear overhang parameter correspondence. Side guards made of material used Q235A, connections bolted; the rear guard of the materials is made of Q235A, bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. It should be installed drive recorder. ABS system model 4460046300, producers of WABCO Vehicle Control Systems (China) Co., Ltd. (Note: possible inaccuracies)

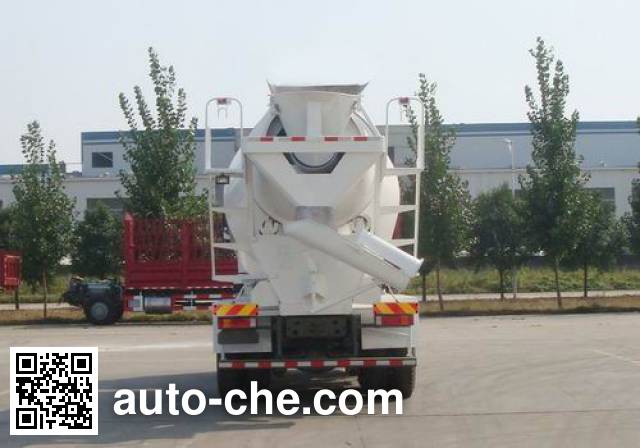

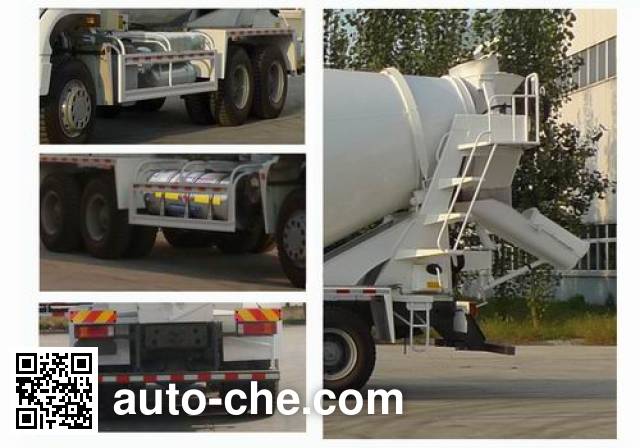

Photo gallery of the China mixer truck Sinotruk Hohan ZZ5255GJBN4346D2L
