ZZ3317N3567N1
Sinotruk Howo Chinese dump truck (tipper truck) ZZ3317N3567N1 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak
Technical Specifications of the China dump truck Sinotruk Howo Vehicle Overview Engine of the China dump truck Sinotruk Howo ZZ3317N3567N1 # Engine Model Engine Displacement Engine Power Engine Manufacturer 1 D10.34-31 9726 cc 249 kW (339 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 2 D10.38-30 9726 cc 279 kW (380 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 3 D12.34-30 11596 cc 249 kW (339 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 4 D12.38-30 11596 cc 279 kW (380 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 5 MC11.35-30 10518 cc 260 kW (354 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 6 MC11.39-30 10518 cc 290 kW (395 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 7 D2066LF03 10518 cc 260 kW (354 hp) MAN Nutzfahrzeuge AG 8 D2066LF02 10518 cc 290 kW (395 hp) MAN Nutzfahrzeuge AG 9 WD615.95E 9726 cc 247 kW (336 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 10 WD615.96E 9726 cc 276 kW (376 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 11 WD615.95NE 9726 cc 247 kW (336 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 12 WD615.96NE 9726 cc 276 kW (376 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications Fuel diesel fuel Environmental standards compliance National III / Euro 3
Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3317N3567N1 Dimensions and Weight Specifications of the China dump truck Overall Dimensions of the China dump truck Overall length (mm) 10360/10410 Overall width (mm) 2496 Overall height (mm) 3490 Cargo Body Dimensions Cargo body length (mm) 7200/7300 Cargo body width (mm) 1100 Cargo body height (mm) 2300 Weights, Ground Pressure and Capacity Rated capacity (kg) 15670 Curb weight of the China dump truck (kg) 15200 Gross vehicle weight (kg) 31000 Load factor (payload to weight ratio) 1.03 Axle load distribution (kg) 6500/7000/17500 (tandem axle) Total mass of trailer (kg) 9900 Wheel Base and Track Wheelbase (mm) 1950+3525+1350 Front track (mm) 2022/2022, 2041/2041 Rear track (mm) 1830/1830 Front/rear overhang (mm) 1540/1995, 1540/2045 Angle of Approach and Departure Angle of approach (deg.) 20 Angle of departure (deg.) 23
Wheels and Tires Tires and Wheels of the China dump truck Sinotruk Howo ZZ3317N3567N1 Number of axles 4 Number of tires 12 Tires dimension 11.00-20 18PR, 11.00R20 18PR, 12.00-20 18PR, 12.00R20 18PR
Misc. Specifications Miscellaneous Specifications Sinotruk Howo ZZ3317N3567N1 (dump truck) Max. speed 78 ABS none Cab seating capacity 2 Steering steering wheel Leaf springs 11 / 11 / 12
Additional Information After unloading the car dump way. Vehicle length and box long rear overhang parameter correspondence. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.(Note: possible inaccuracies)

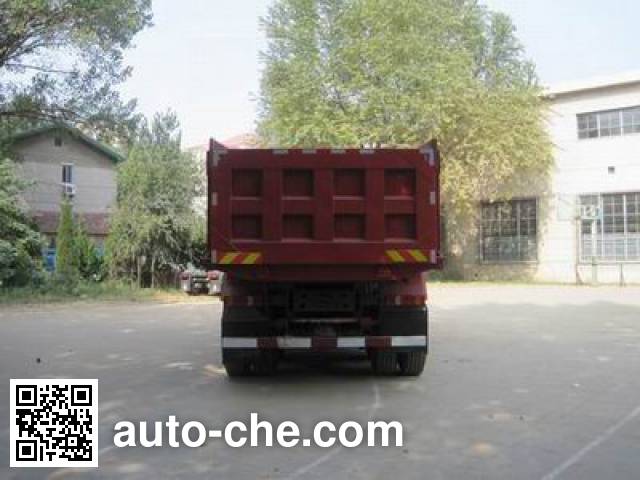

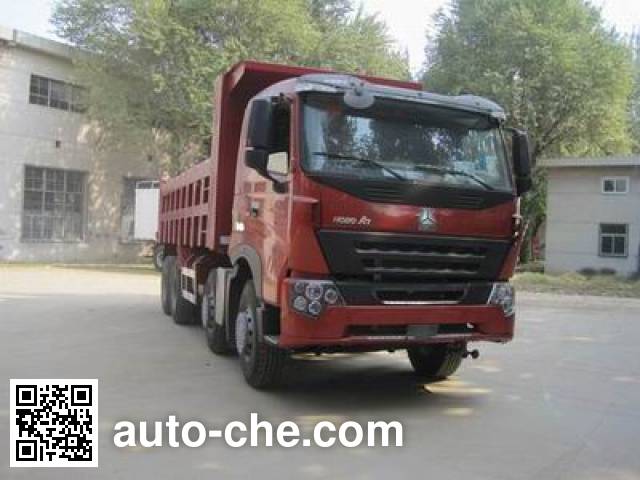

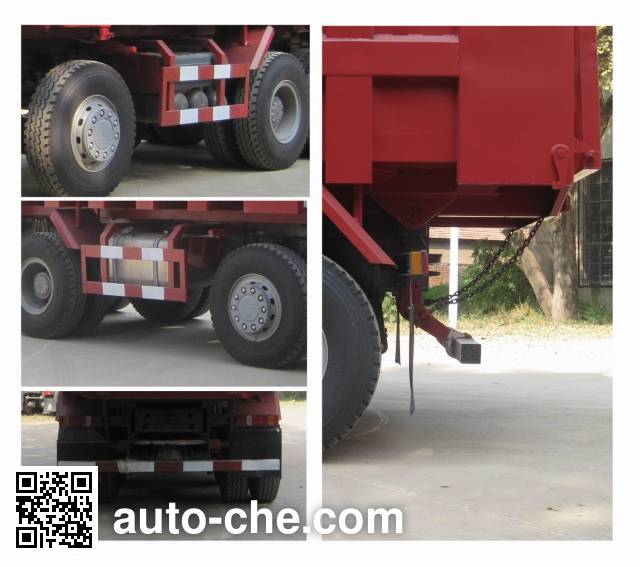

Photo gallery of the China dump truck Sinotruk Howo ZZ3317N3567N1 See Also Sinotruk Howo ZZ3257M3647C1 (dump truck)
