howo tipper / dump truck

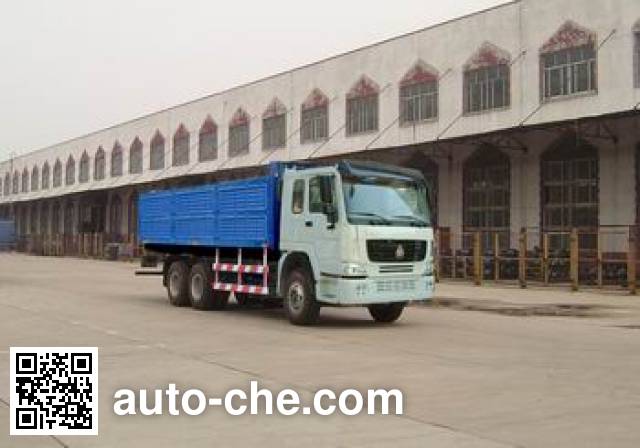

Sinotruk Howo ZZ3257N4341W dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck ZZ3257N4341W

ZZ3257N4341W

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3257N4341W manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3257N4341W chassis. Cab seating capacity is  2, curb weight is of the China dump truck 12480 kg, gross vehicle weight is 25000 kg, wheelbase is 4325+1350, 4300+1400 mm, engine: WD615.69 / WD615.47, max. speed is 102, 90 km/h, cargo body is 7100 × 2300 × 1400 mm, total mass of trailer is 23600 kg.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3257N4341W
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3257N4341W

Engine of the China dump truck Sinotruk Howo ZZ3257N4341W

Engine Specifications of the China dump truck
Engine ModelWD615.69 / WD615.47
Engine displacement (cc)9726 / 9726
Engine power (kW)247 / 273

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3257N4341W

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)9800
Overall width (mm)2496
Overall height (mm)3048
Cargo Body Dimensions
Cargo body length (mm)7100
Cargo body width (mm)2300
Cargo body height (mm)1400
Weights
Curb weight of the China dump truck (kg)12480
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.00
Total mass of trailer (kg)23600
Wheel Base
Wheelbase (mm)4325+1350, 4300+1400
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)2625, 2600
Angle of Approach and Departure
Angle of approach (deg.)16
Angle of departure (deg.)15

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Howo ZZ3257N4341W
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3257N4341W (dump truck)
Max. speed102, 90
Cab seating capacity2
Steeringsteering wheel

Additional Information

This product since October 1, 2004, as a vehicle registered products should be installed according to the vehicle body reflective logo on the rear.
(Note: possible inaccuracies)
