Sida Steyr Chinese dump truck (tipper truck) ZZ3313N3661E1L manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3313N3661E1L chassis. Engine: T10.32-50 / T10.34-50 / T12.34-50 / T12.38-50, wheelbase is 1800+3600+1350 mm, tires are 11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 18PR, cab seating capacity is 2, with ABS, gross vehicle weight is 31000 kg, curb weight is of the China dump truck 15290 kg, cargo body is 7000/7200/7400 × 1115 × 2300 mm, max. speed is 82 km/h, environmental standard is GB17691-2005 National V / Euro 5, GB18285-2005, GB11340-2005, natural gas, rated capacity is 15580 kg.
Technical Specifications of the China dump truck Sida Steyr
11 / 11 / 12, left 14 right 13 / left 14 right 13 / 12, 4 / 4 / -, 11 / 11 / -
Additional Information
Compartment dump mode after unloading. Optional cargo box appearance of the structure, the optional environmental cover. Vehicle length and long car, rear overhang and departure angle parameter correspondence. Side guards made of material used Q235A, connections bolted; the rear guard of the materials is made of Q235A, bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. When the optional T12.34-50 and T12.38-50 engine, battery and the muffler and other parts in the right side of the vehicle. ABS system model 4460046300, producers of WABCO Vehicle Control Systems (China) Co., Ltd. It should be installed drive recorder. (Note: possible inaccuracies)

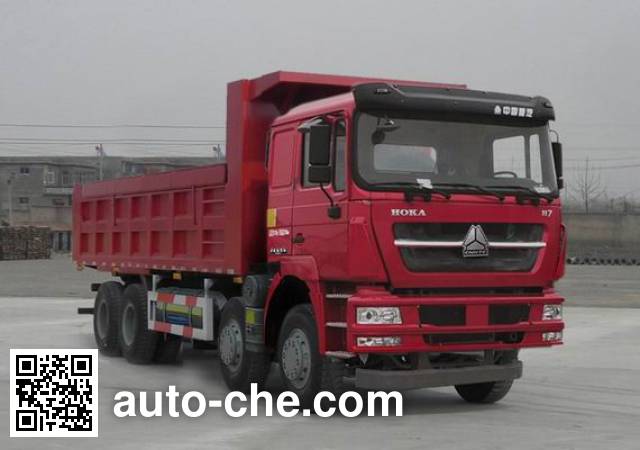

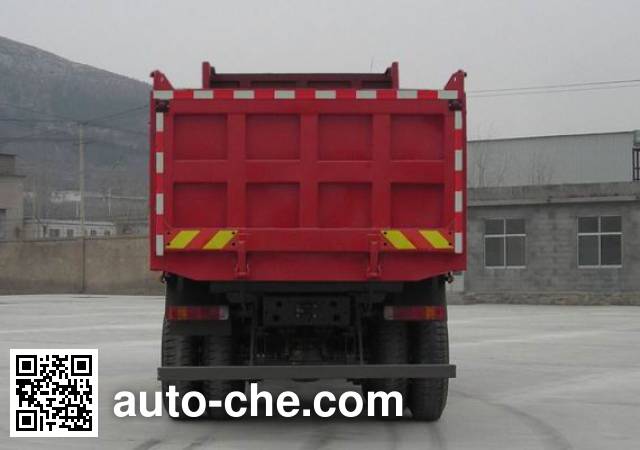

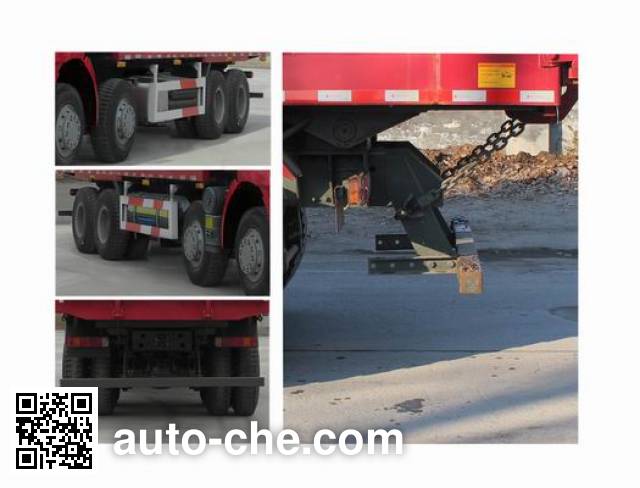

Photo gallery of the China dump truck Sida Steyr ZZ3313N3661E1L
