Sinotruk Howo ZZ3257N3247N1 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

ZZ3257N3247N1

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3257N3247N1 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3257N3247N1 chassis. Wheelbase is 3225+1350 mm, without ABS, environmental standard is National III / Euro 3, cargo body is 4800 × 1400 × 2300 mm, curb weight is of the China dump truck 11950 kg, rated capacity is 12920 kg, diesel fuel, tires are 11.00-20 18PR, 11.00R20 18PR, 12.00-20 18PR, 12.00R20 16PR, engine: D10.34-31 / D10.38-30 / D12.34-30 / D12.38-30 / WD615.95E / WD615.96E, gross vehicle weight is 25000 kg, cab seating capacity is  2, max. speed is 78 km/h.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

Engine of the China dump truck Sinotruk Howo ZZ3257N3247N1

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3257N3247N1

Wheels and Tires

Misc. Specifications

Additional Information

After unloading the car dump way. When the optional D12 series engines, fuel tank and other components to the left of the vehicle. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

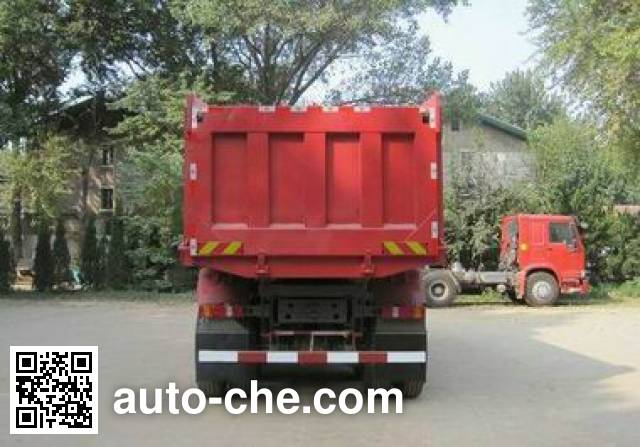

Photo gallery of the China dump truck Sinotruk Howo ZZ3257N3247N1
