Sinotruk Howo Chinese dump truck (tipper truck) ZZ3317M3567D1 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3317M3567D1 chassis. Cab seating capacity is 2, wheelbase is 1800+3500+1350 mm, environmental standard is , diesel fuel, engine: D10.28-40 / D10.31-40, tires are 11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 18PR, gross vehicle weight is 31000 kg, max. speed is 80 km/h, cargo body is 7300 × 1140 × 2300 mm, with ABS, rated capacity is 15780 kg, curb weight is of the China dump truck 15090 kg.
Technical Specifications of the China dump truck Sinotruk Howo
Compartment dump mode after unloading. Optional standard cab. Optional crates appearance of the structure. Optional environmental cover. Side guards made of material used Q235A, connections bolted; the rear guard of the materials is made of Q235A, bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. When the optional D10.28-40 engine, fuel consumption is 45.6L / 100km; when the optional D10.31-40 engine, fuel consumption is 45.9L / 100km. ABS system model 4460046300, producers of WABCO Vehicle Control Systems (China) Co., Ltd. It should be installed drive recorder. (Note: possible inaccuracies)

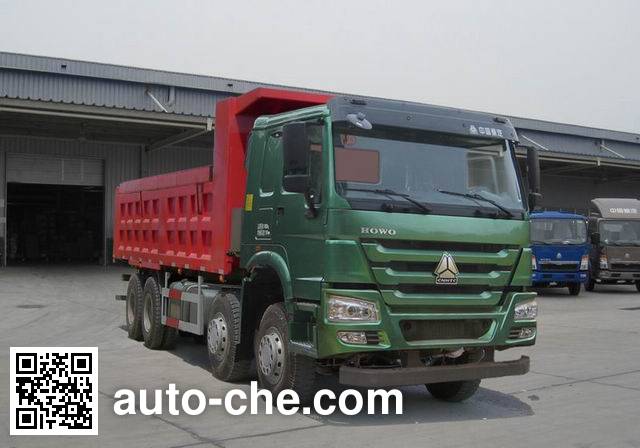

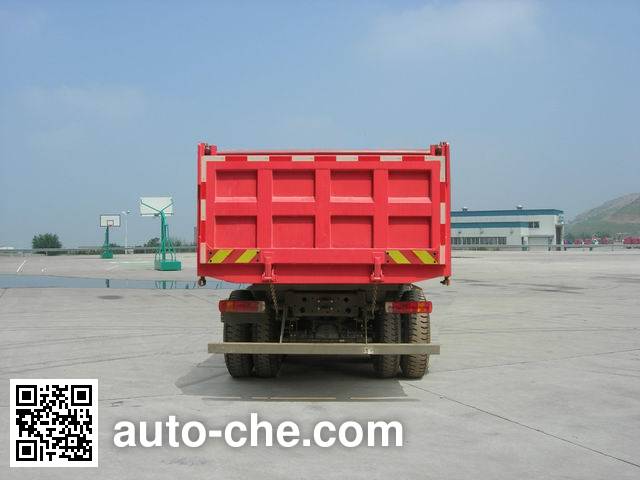

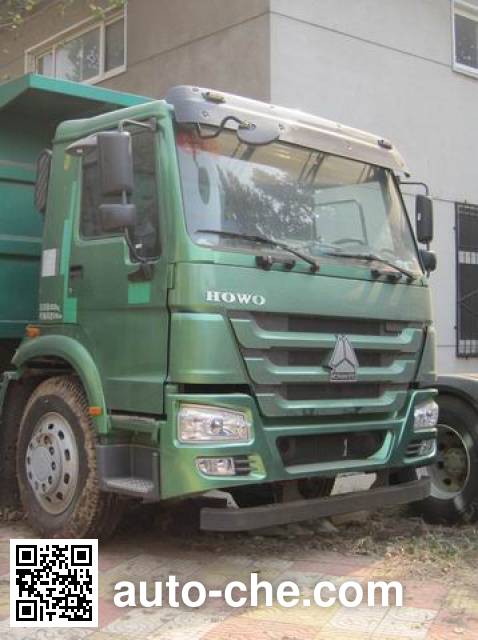

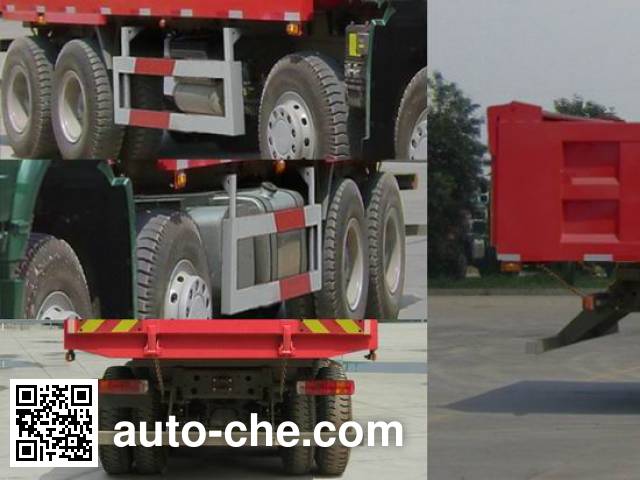

Photo gallery of the China dump truck Sinotruk Howo ZZ3317M3567D1
