Sinotruk Howo ZZ3257M4147N1 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck ZZ3257M4147N1

ZZ3257M4147N1

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3257M4147N1 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3257M4147N1 chassis. Curb weight is of the China dump truck 12370 kg, max. speed is 78 km/h, cab seating capacity is  2, rated capacity is 12500 kg, environmental standard is National III / Euro 3, tires are 11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 16PR, without ABS, cargo body is 5800/6000 × 1100 × 2300 mm, engine: D10.27-31 / D10.30-31 / WD615.92E / WD615.97E / WD615.92NE / WD615.97NE, diesel fuel, gross vehicle weight is 25000 kg, wheelbase is 4125+1350 mm.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3257M4147N1
Vehicle typeDump truck (tipper truck)
VIN
  • LZZ5ELME×××××××××
  • LZZ5ELNE×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3257M4147N1

Engine of the China dump truck Sinotruk Howo ZZ3257M4147N1

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1D10.27-319726 cc198 kW (270 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2D10.30-319726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.92E9726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.97E9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
5WD615.92NE9726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
6WD615.97NE9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3257M4147N1

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8835/8915
Overall width (mm)2496
Overall height (mm)3490
Cargo Body Dimensions
Cargo body length (mm)5800/6000
Cargo body width (mm)1100
Cargo body height (mm)2300
Weights, Ground Pressure and Capacity
Rated capacity (kg)12500
Curb weight of the China dump truck (kg)12370
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.02
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base and Track
Wheelbase (mm)4125+1350
Front track (mm)2022, 2041
Rear track (mm)1830/1830
Front/rear overhang (mm)1540/1820, 1540/1900
Angle of approach/departure (deg.)20/25, 20/24

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Howo ZZ3257M4147N1
Number of axles3
Number of tires10
Tires dimension11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 16PR

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3257M4147N1 (dump truck)
Max. speed78
ABSnone
Cab seating capacity2
Steeringsteering wheel
Leaf springs10 / 12, 10 / -

Additional Information

After unloading the car dump way. Vehicle length and box long rear overhang, departure angle parameter correspondence. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

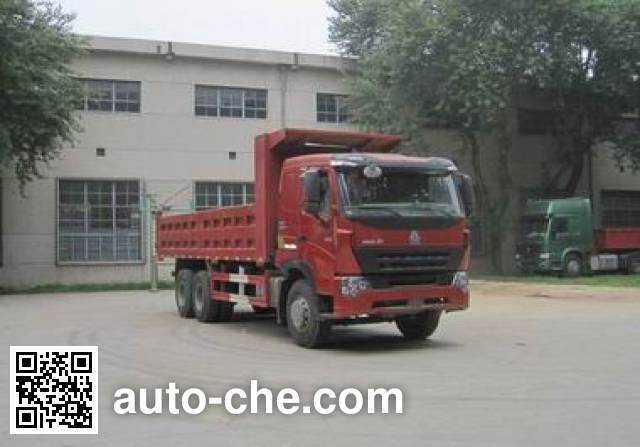

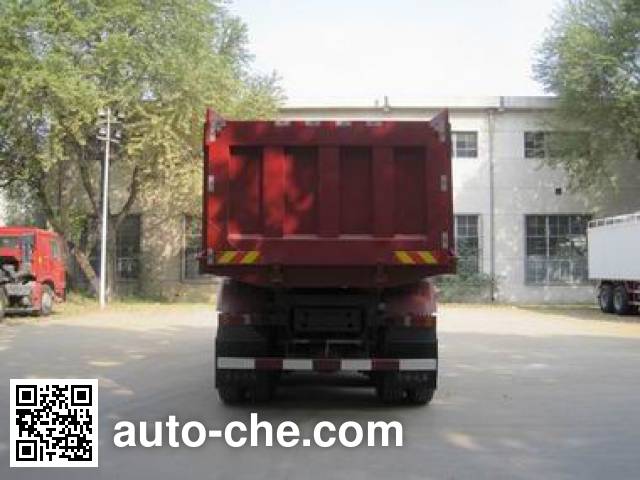

Photo gallery of the China dump truck Sinotruk Howo ZZ3257M4147N1
