howo tipper / dump truck

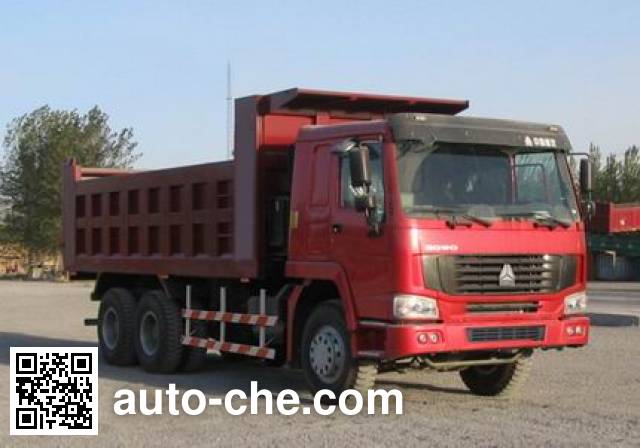

Sinotruk Howo ZZ3257M4147A dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck ZZ3257M4147A

ZZ3257M4147A

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3257M4147A manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3257M4147A chassis. Cab seating capacity is  2, curb weight is of the China dump truck 12270, 12470 kg, engine: WD615.62 / WD615.87, wheelbase is 4125+1350 mm, cargo body is 6000 × 2300 × 1100 mm, gross vehicle weight is 25000 kg, max. speed is 75 km/h.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3257M4147A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3257M4147A

Engine of the China dump truck Sinotruk Howo ZZ3257M4147A

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.87
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 213

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3257M4147A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8845
Overall width (mm)2496
Overall height (mm)3170
Cargo Body Dimensions
Cargo body length (mm)6000
Cargo body width (mm)2300
Cargo body height (mm)1100
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12270, 12470
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.03, 1.00
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)4125+1350
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)1870
Angle of Approach and Departure
Angle of approach (deg.)19
Angle of departure (deg.)23

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Howo ZZ3257M4147A
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3257M4147A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

Curb weight were without cover and quality time with the cap. The car optional green container with lid, cover the quality of 200kg.
(Note: possible inaccuracies)
