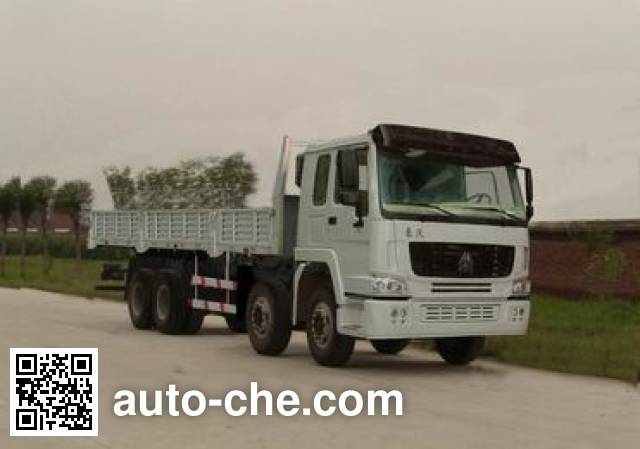

ZZ1317S3261W
Sinotruk Howo Chinese cargo truck ZZ1317S3261W manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak
Technical Specifications of the China truck Sinotruk Howo Vehicle Overview Engine of the China truck Sinotruk Howo ZZ1317S3261W Engine Specifications of the China truck Engine Model WD615.47 / WD615.47 Engine displacement (cc) 9726 / 9726 Engine power (kW) 273 / 273
Dimensions and Weights of the China truck Sinotruk Howo ZZ1317S3261W Dimensions and Weight Specifications of the China truck Overall Dimensions of the China truck Overall length (mm) 10207 Overall width (mm) 2496 Overall height (mm) 3115/3785 Cargo Body Dimensions Cargo body length (mm) 7500 Cargo body width (mm) 2326 Cargo body height (mm) 600/800 Weights Curb weight of the China truck (kg) 12650, 12770 Gross vehicle weight (kg) 31000 Load factor (payload to weight ratio) 1.43 Wheel Base Wheelbase (mm) 1800+3200+1350, 1800+3175+1400 Front and Rear Overhang Front overhang (mm) 1500 Rear overhang (mm) 2357, 2332 Angle of Approach and Departure Angle of approach (deg.) 16 Angle of departure (deg.) 18
Wheels and Tires Tires and Wheels of the China truck Sinotruk Howo ZZ1317S3261W Number of axles 4
Misc. Specifications Miscellaneous Specifications Sinotruk Howo ZZ1317S3261W (cargo truck) Max. speed 90, 102 Cab seating capacity 2 Steering steering wheel
Additional Information The car optional cover. The car should be installed body reflective logo on the side and rear.(Note: possible inaccuracies)
