ZZ1257M4347C
Sinotruk Howo Chinese cargo truck ZZ1257M4347C manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak
Technical Specifications of the China truck Sinotruk Howo Vehicle Overview Make Sinotruk Howo Vehicle model ZZ1257M4347C Vehicle type Cargo truck VIN LZZ5BLMF××××××××× LZZ5BLNF××××××××× LZZ5BMMF××××××××× LZZ5BMNF××××××××× Manufacturer Sinotruk Jinan Truck Co., Ltd. Country China Manufacturer's location Jinan, Shandong Province, China. Vehicle chassis ZZ1257M4347C
Engine of the China truck Sinotruk Howo ZZ1257M4347C # Engine Model Engine Displacement Engine Power Engine Manufacturer 1 WD615.92 9726 cc 196 kW (267 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 2 WD615.93 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 3 WD615.92E 9726 cc 196 kW (267 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 4 WD615.93E 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 5 WD615.92C 9726 cc 198 kW (270 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 6 WD615.93C 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 7 WD615.97C 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 8 WD615.97E 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
Dimensions and Weights of the China truck Sinotruk Howo ZZ1257M4347C Dimensions and Weight Specifications of the China truck Overall Dimensions of the China truck Overall length (mm) 9800 Overall width (mm) 2496 Overall height (mm) 3048/3633 Cargo Body Dimensions Cargo body length (mm) 7100 Cargo body width (mm) 600/800 Cargo body height (mm) 2326 Weights, Ground Pressure and Capacity Rated capacity (kg) 13840, 13720 Curb weight of the China truck (kg) 11030, 11150 Gross vehicle weight (kg) 25000 Load factor (payload to weight ratio) 1.26, 1.24 Axle load distribution (kg) 7000/18000 (tandem axle) Total mass of trailer (kg) 14200, 17600 Wheel Base and Track Wheelbase (mm) 4325+1350, 4300+1400 Front track (mm) 2022, 2041 Rear track (mm) 1830/1830 Front and Rear Overhang Front overhang (mm) 1500 Rear overhang (mm) 2625, 2600 Angle of Approach and Departure Angle of approach (deg.) 16 Angle of departure (deg.) 15
Wheels and Tires Tires and Wheels of the China truck Sinotruk Howo ZZ1257M4347C Number of axles 3 Number of tires 10 Tires dimension 11.00-20, 12.00-20 16PR11.00R20 16PR, 12.00R20 14PR
Misc. Specifications Miscellaneous Specifications Sinotruk Howo ZZ1257M4347C (cargo truck) Max. speed 90, 102 ABS have Leaf springs 10 / 12, 4 / 12, 4 / -, 10 / -

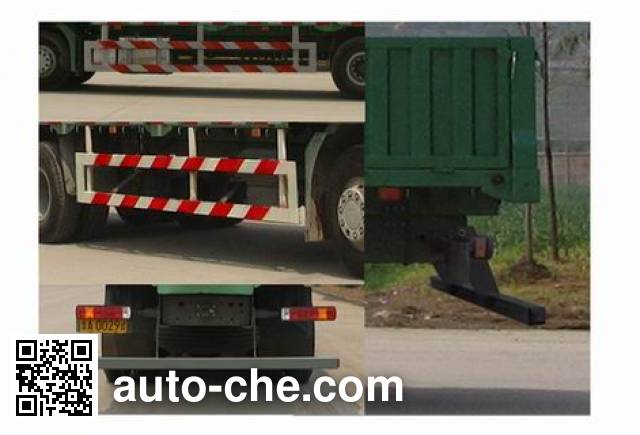

Additional Information Car optional high roof cab height of 3633mm; car engine power value is maximum net power value, when the optional WD615.92 engine, quasi-total mass of trailer 14200kg, when the optional WD615.93 engine, quasi The total mass of the trailer 17600kg. Side guards made of material used Q235A, bolted connections; the rear guard of the materials made of Q235A, bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. ABS System Model 446 004 ××××, producers of WABCO Vehicle Control Systems (China) Limited. Installation tachograph have GPS capabilities.(Note: possible inaccuracies)

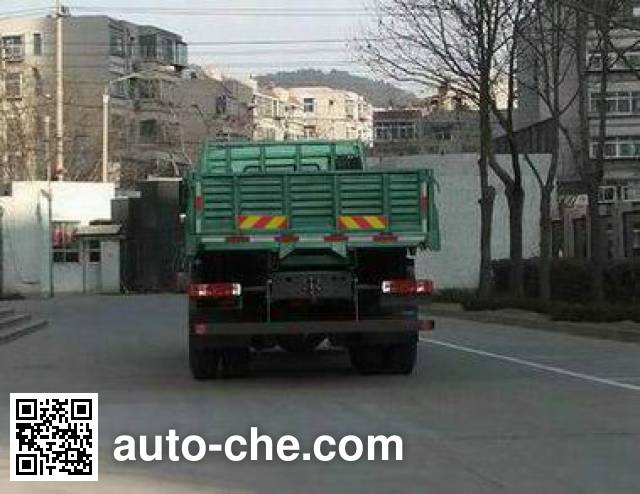

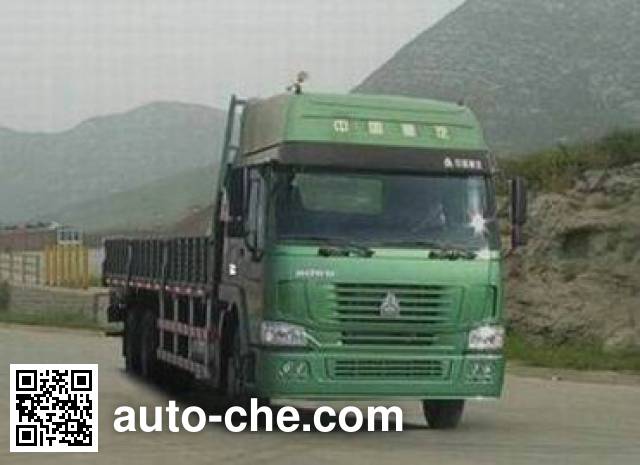

Photo gallery of the China truck Sinotruk Howo ZZ1257M4347C See Also Sinotruk Howo ZZ1257M5247C (cargo truck)
