hania tipper / dump truck

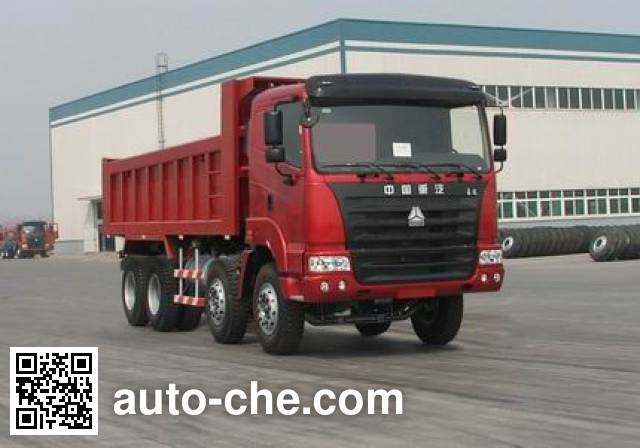

Sinotruk Hania ZZ3315N3265A dump truck manufactured by Sinotruk Group Co., Ltd.

Sinotruk Hania dump truck ZZ3315N3265A

ZZ3315N3265A

Sinotruk Hania Chinese dump truck (tipper truck) ZZ3315N3265A manufactured by Sinotruk Group Co., Ltd. (a heavy duty truck manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3315N3265B chassis. Gross vehicle weight is 31000 kg, max. speed is 75 km/h, engine: WD615.69, cargo body is 7200 × 2300 × 1100 mm, curb weight is of the China dump truck 15020, 15270 kg, wheelbase is 1800+3200+1350 mm, cab seating capacity is  2.

Technical Specifications of the China dump truck Sinotruk Hania

Vehicle Overview

MakeSinotruk Hania
Vehicle modelZZ3315N3265A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3315N3265B

Engine of the China dump truck Sinotruk Hania ZZ3315N3265A

Engine Specifications of the China dump truck
Engine ModelWD615.69
Engine displacement (cc)9726
Engine power (kW (hp))247 (336)

Dimensions and Weights of the China dump truck Sinotruk Hania ZZ3315N3265A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)9980
Overall width (mm)2496
Overall height (mm)3300
Cargo Body Dimensions
Cargo body length (mm)7200
Cargo body width (mm)2300
Cargo body height (mm)1100
Weights, Ground Pressure
Curb weight of the China dump truck (kg)15020, 15270
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.06, 1.03
Axle load distribution (kg)6500/7000/17500  (tandem axle)
Wheel Base
Wheelbase (mm)1800+3200+1350
Front and Rear Overhang
Front overhang (mm)1550
Rear overhang (mm)2080
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)23

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Hania ZZ3315N3265A
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sinotruk Hania ZZ3315N3265A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

Curb weight were without cover and quality time with the cap. The car optional green container with lid, cover the quality of 250kg.
(Note: possible inaccuracies)
