ZZ3316N3566F

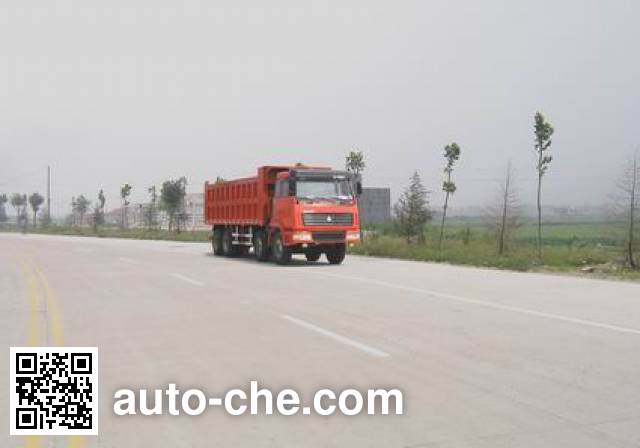

Sida Steyr Chinese dump truck (tipper truck) ZZ3316N3566F manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak
Technical Specifications of the China dump truck Sida Steyr Vehicle Overview Engine of the China dump truck Sida Steyr ZZ3316N3566F Engine Specifications of the China dump truck Engine Model WD615.69 / WD615.69 / WD615.47 Engine displacement (cc) 9726 / 9726 / 9726 Engine power (kW) 247 / 247 / 273
Dimensions and Weights of the China dump truck Sida Steyr ZZ3316N3566F Dimensions and Weight Specifications of the China dump truck Overall Dimensions of the China dump truck Overall length (mm) 10255 Overall width (mm) 2496 Overall height (mm) 3320/3536 Cargo Body Dimensions Cargo body length (mm) 7300 Cargo body width (mm) 2300 Cargo body height (mm) 1200/1500 Weights, Ground Pressure Curb weight of the China dump truck (kg) 14960, 15280 Gross vehicle weight (kg) 31000 Load factor (payload to weight ratio) 1.03 Axle load distribution (kg) 6500/7000/17500 (tandem axle) Wheel Base Wheelbase (mm) 1800+3500+1350 Front and Rear Overhang Front overhang (mm) 1560 Rear overhang (mm) 2045 Angle of Approach and Departure Angle of approach (deg.) 20 Angle of departure (deg.) 22
Wheels and Tires Tires and Wheels of the China dump truck Sida Steyr ZZ3316N3566F Number of axles 4
Misc. Specifications Miscellaneous Specifications Sida Steyr ZZ3316N3566F (dump truck) Max. speed 75 Cab seating capacity 2 Steering steering wheel
Additional Information The car optional green container with lid, cover the quality of 390kg.(Note: possible inaccuracies)
