steyr tipper / dump truck

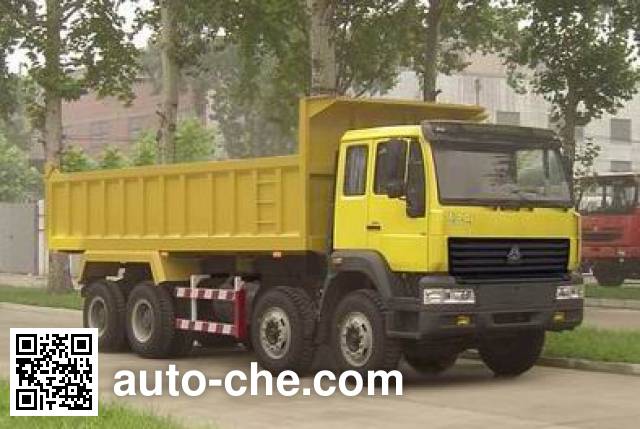

Sida Steyr ZZ3311N3061A dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3311N3061A

ZZ3311N3061A

Sida Steyr Chinese dump truck (tipper truck) ZZ3311N3061A manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3311N3062W chassis. Gross vehicle weight is 31000 kg, max. speed is 75 km/h, engine: WD615.69, curb weight is of the China dump truck 14980, 15190 kg, cab seating capacity is  2, cargo body is 6200 × 2300 × 1200/1300 mm, wheelbase is 1800+3000+1350 mm.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3311N3061A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3311N3062W

Engine of the China dump truck Sida Steyr ZZ3311N3061A

Engine Specifications of the China dump truck
Engine ModelWD615.69
Engine displacement (cc)9726
Engine power (kW (hp))247 (336)

Dimensions and Weights of the China dump truck Sida Steyr ZZ3311N3061A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8905
Overall width (mm)2490
Overall height (mm)3250/3450
Cargo Body Dimensions
Cargo body length (mm)6200
Cargo body width (mm)2300
Cargo body height (mm)1200/1300
Weights, Ground Pressure
Curb weight of the China dump truck (kg)14980, 15190
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.06, 1.04
Axle load distribution (kg)6300/7000/17700  (tandem axle)
Wheel Base
Wheelbase (mm)1800+3000+1350
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)1435
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)45

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3311N3061A
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3311N3061A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

High box and vehicle height parameters correspond, respectively, with no roof curb weight and quality time with the cap. The car optional green container with lid, cover the quality of 210kg.
(Note: possible inaccuracies)
