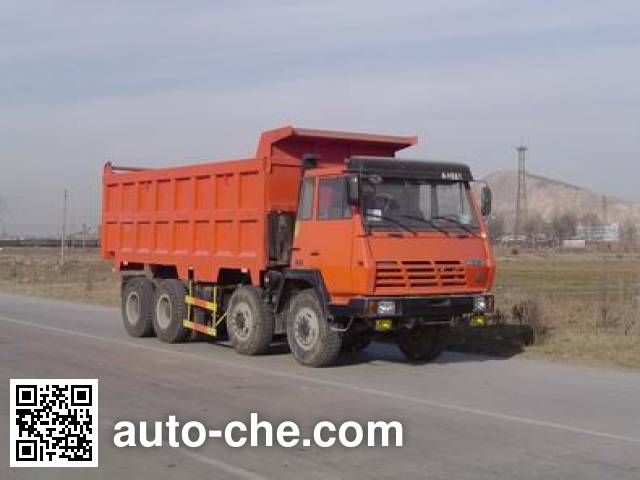

ZZ3262N3061
Sida Steyr Chinese dump truck (tipper truck) ZZ3262N3061 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak
Technical Specifications of the China dump truck Sida Steyr Vehicle Overview Engine of the China dump truck Sida Steyr ZZ3262N3061 Engine Specifications of the China dump truck Engine Model WD615.69 / WD615.69 Engine displacement (cc) 9726 / 9726 Engine power (kW) 247 / 247
Dimensions and Weights of the China dump truck Sida Steyr ZZ3262N3061 Dimensions and Weight Specifications of the China dump truck Overall Dimensions of the China dump truck Overall length (mm) 9806 Overall width (mm) 2496 Overall height (mm) 3320/3536 Cargo Body Dimensions Cargo body length (mm) 7000 Cargo body width (mm) 2300 Cargo body height (mm) 1200/1500 Weights, Ground Pressure Curb weight of the China dump truck (kg) 12680, 12850 Gross vehicle weight (kg) 26000 Load factor (payload to weight ratio) 1.05, 1.02 Axle load distribution (kg) 5500/6000/14500 (tandem axle) Wheel Base Wheelbase (mm) 1800+3000+1350 Front and Rear Overhang Front overhang (mm) 1576 Rear overhang (mm) 2080 Angle of Approach and Departure Angle of approach (deg.) 22 Angle of departure (deg.) 23
Wheels and Tires Tires and Wheels of the China dump truck Sida Steyr ZZ3262N3061 Number of axles 4
Misc. Specifications Miscellaneous Specifications Sida Steyr ZZ3262N3061 (dump truck) Max. speed 75 Cab seating capacity 2 Steering steering wheel
Additional Information The car optional green container with lid, cover the quality of 360kg.(Note: possible inaccuracies)
