steyr tipper / dump truck

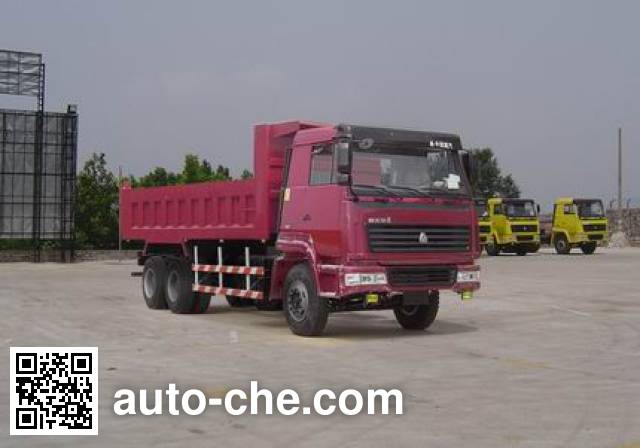

Sida Steyr ZZ3256N4646A dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3256N4646A

ZZ3256N4646A

Sida Steyr Chinese dump truck (tipper truck) ZZ3256N4646A manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3256N4646A chassis. Cab seating capacity is  2, gross vehicle weight is 25000 kg, wheelbase is 4325+1350, 4600+1350 mm, max. speed is 75 km/h, curb weight is of the China dump truck 12250, 12490 kg, cargo body is 7000 × 2300 × 900 mm, engine: WD615.69.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3256N4646A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3256N4646A

Engine of the China dump truck Sida Steyr ZZ3256N4646A

Engine Specifications of the China dump truck
Engine ModelWD615.69
Engine displacement (cc)9726
Engine power (kW (hp))247 (336)

Dimensions and Weights of the China dump truck Sida Steyr ZZ3256N4646A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)9790
Overall width (mm)2496
Overall height (mm)3270
Cargo Body Dimensions
Cargo body length (mm)7000
Cargo body width (mm)2300
Cargo body height (mm)900
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12250, 12490
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.04, 1.00
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)4325+1350, 4600+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)2280
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)21

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3256N4646A
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3256N4646A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car is only optional chassis wheelbase 4600 +1350, respectively, with no roof curb weight and quality time with the cap. The car optional green container with lid, cover the quality of 240kg.
(Note: possible inaccuracies)
