steyr tipper / dump truck

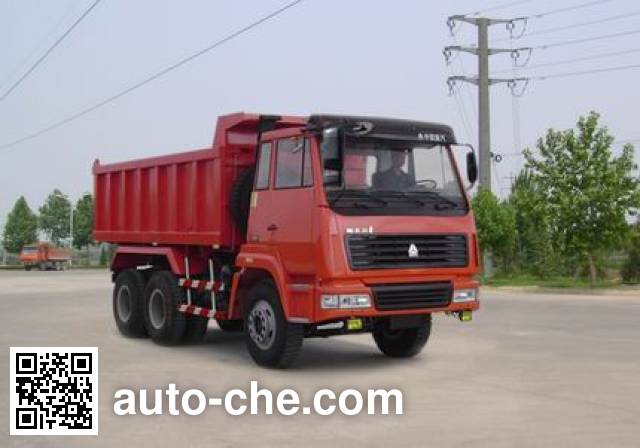

Sida Steyr ZZ3256N2946A dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3256N2946A

ZZ3256N2946A

Sida Steyr Chinese dump truck (tipper truck) ZZ3256N2946A manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3256N2946A chassis. Max. speed is 75 km/h, cargo body is 4800 × 2300 × 1300/1400 mm, engine: WD615.69, gross vehicle weight is 25000 kg, wheelbase is 2925+1350 mm, cab seating capacity is  2, curb weight is of the China dump truck 11950, 12110 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3256N2946A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3256N2946A

Engine of the China dump truck Sida Steyr ZZ3256N2946A

Engine Specifications of the China dump truck
Engine ModelWD615.69
Engine displacement (cc)9726
Engine power (kW (hp))247 (336)

Dimensions and Weights of the China dump truck Sida Steyr ZZ3256N2946A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)7416
Overall width (mm)2496
Overall height (mm)3486
Cargo Body Dimensions
Cargo body length (mm)4800
Cargo body width (mm)2300
Cargo body height (mm)1300/1400
Weights, Ground Pressure
Curb weight of the China dump truck (kg)11950, 12110
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.09, 1.06
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)2925+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)1581
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)29

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3256N2946A
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3256N2946A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

Curb weight were without cover and quality time with the cap. The car optional green container with lid, cover the quality of 160kg.
(Note: possible inaccuracies)
