steyr tipper / dump truck

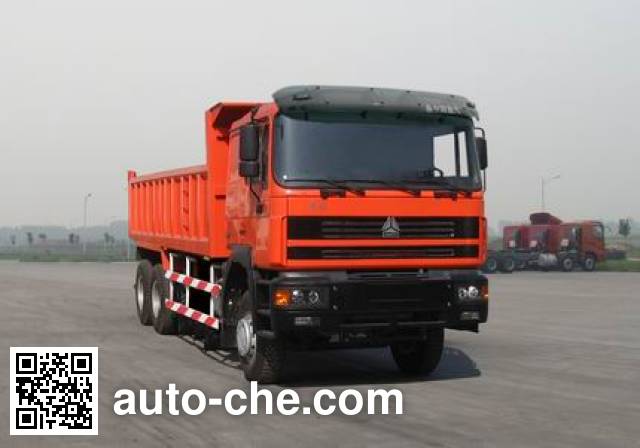

Sida Steyr ZZ3253M4641A dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3253M4641A

ZZ3253M4641A

Sida Steyr Chinese dump truck (tipper truck) ZZ3253M4641A manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3253M4641A chassis. Cargo body is 6400 × 2300 × 1000 mm, max. speed is 78 km/h, gross vehicle weight is 25000 kg, cab seating capacity is  2, curb weight is of the China dump truck 12270, 12490 kg, wheelbase is 4400+1350, 4600+1350 mm, engine: WD615.62 / WD615.87.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3253M4641A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3253M4641A

Engine of the China dump truck Sida Steyr ZZ3253M4641A

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.87
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3253M4641A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)9525
Overall width (mm)2490
Overall height (mm)3280
Cargo Body Dimensions
Cargo body length (mm)6400
Cargo body width (mm)2300
Cargo body height (mm)1000
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12270, 12490
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.03, 1.00
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)4400+1350, 4600+1350
Front and Rear Overhang
Front overhang (mm)1525
Rear overhang (mm)2050
Angle of Approach and Departure
Angle of approach (deg.)29
Angle of departure (deg.)26

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3253M4641A
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3253M4641A (dump truck)
Max. speed78
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car is only optional wheelbase 4600 +1350 (mm) chassis, curb weight, respectively, with no cover and the quality time with the cap. The car optional green container with lid, cover the quality of 220kg.
(Note: possible inaccuracies)
