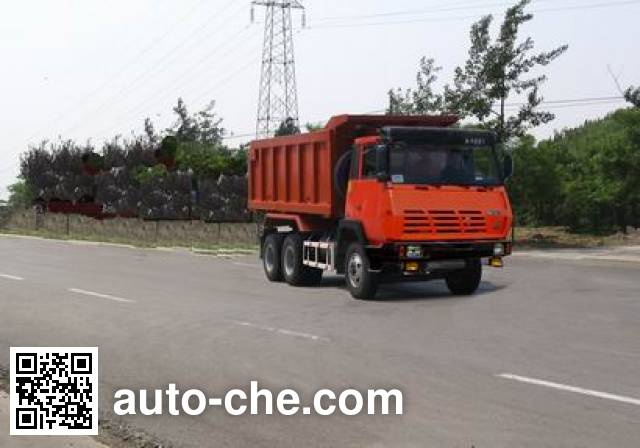

Sida Steyr ZZ3252M3840 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3252M3840

ZZ3252M3840

Sida Steyr Chinese dump truck (tipper truck) ZZ3252M3840 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3252M3840 chassis. Wheelbase is 3800+1350 mm, cargo body is 6000 × 2300 × 1000/1200/1300/1400/1500 mm, max. speed is 75 km/h, cab seating capacity is  2, curb weight is of the China dump truck 12050, 12200, 12280, 12360 kg, engine: WD615.61A / WD615.61A / WD615.62 / WD615.62 / WD615.67 / WD615.67 / WD615.87 / WD615.87, gross vehicle weight is 25000 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3252M3840
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3252M3840

Engine of the China dump truck Sida Steyr ZZ3252M3840

Engine Specifications of the China dump truck
Engine ModelWD615.61A / WD615.61A / WD615.62 / WD615.62 / WD615.67 / WD615.67 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726
Engine power (kW)193 / 193 / 196 / 196 / 206 / 206 / 213 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3252M3840

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8665
Overall width (mm)2496
Overall height (mm)3200/3416
Cargo Body Dimensions
Cargo body length (mm)6000
Cargo body width (mm)2300
Cargo body height (mm)1000/1200/1300/1400/1500
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12050, 12200, 12280, 12360
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.01
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)3800+1350
Front and Rear Overhang
Front overhang (mm)1576
Rear overhang (mm)1939
Angle of Approach and Departure
Angle of approach (deg.)22
Angle of departure (deg.)24

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3252M3840
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3252M3840 (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The only optional car chassis WD615.62 and WD615.87 engines.The car optional environmental lidded containers, cargo box cover quality 320kg. .Rated quality; 12510,12430, curb weight also is: 12440
(Note: possible inaccuracies)
