Sida Steyr ZZ3252M2941C2 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3252M2941C2

ZZ3252M2941C2

Sida Steyr Chinese dump truck (tipper truck) ZZ3252M2941C2 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3252M2941C2 chassis. Rated capacity is 12570 kg, curb weight is of the China dump truck 12300 kg, cab seating capacity is  2, tires are 11.00-20, 11.00R20, 12.00-20, 12.00R20, without ABS, diesel fuel, cargo body is 4800 × 1200/1300 × 2300 mm, gross vehicle weight is 25000 kg, wheelbase is 2925+1350 mm, max. speed is 75 km/h, environmental standard is National III / Euro 3, engine: WD615.92E / WD615.93E / WD615.97C / WD615.97E / WD615.92C / WD615.93C.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3252M2941C2
Vehicle typeDump truck (tipper truck)
VIN
  • LZZAELMA×××××××××
  • LZZAELNA×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3252M2941C2

Engine of the China dump truck Sida Steyr ZZ3252M2941C2

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1WD615.92E9726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2WD615.93E9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.97C9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.97E9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
5WD615.92C9726 cc198 kW (270 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
6WD615.93C9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China dump truck Sida Steyr ZZ3252M2941C2

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)7432
Overall width (mm)2496
Overall height (mm)3200/3416
Cargo Body Dimensions
Cargo body length (mm)4800
Cargo body width (mm)1200/1300
Cargo body height (mm)2300
Weights, Ground Pressure and Capacity
Rated capacity (kg)12570
Curb weight of the China dump truck (kg)12300
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.03
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base and Track
Wheelbase (mm)2925+1350
Front track (mm)1939, 1958
Rear track (mm)1800/1800, 1830/1830
Front and Rear Overhang
Front overhang (mm)1576
Rear overhang (mm)1581
Angle of Approach and Departure
Angle of approach (deg.)22
Angle of departure (deg.)30

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3252M2941C2
Number of axles3
Number of tires10
Tires dimension11.00-20, 11.00R20, 12.00-20, 12.00R20

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3252M2941C2 (dump truck)
Max. speed75
ABSnone
Cab seating capacity2
Steeringsteering wheel
Leaf springs10 / 12, 10 / -

Additional Information

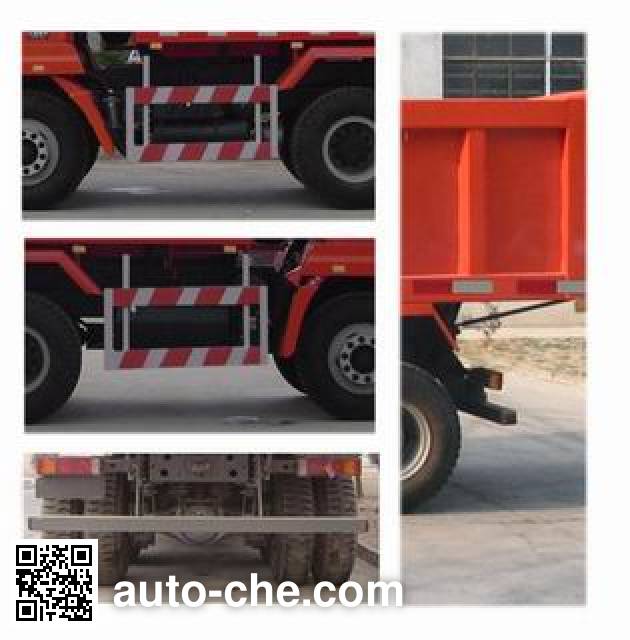

Container dump mode after unloading. Box height and vehicle height parameters correspond. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

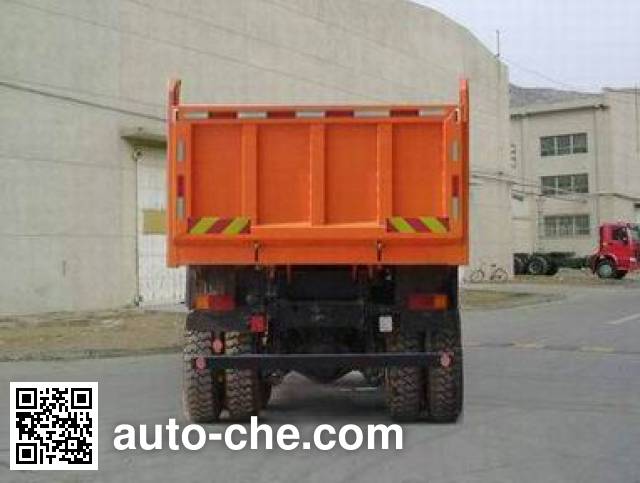

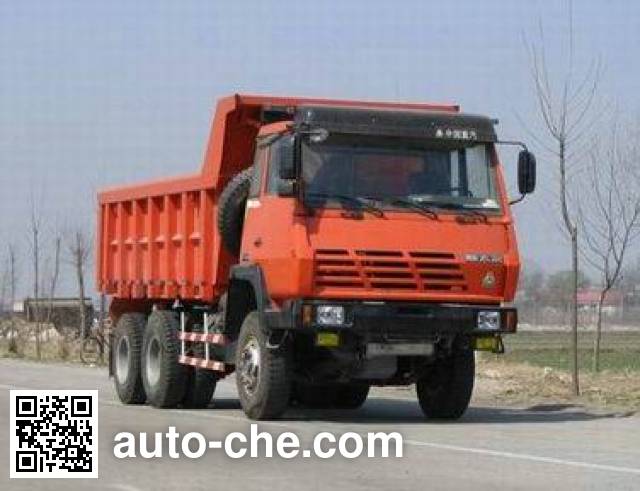

Photo gallery of the China dump truck Sida Steyr ZZ3252M2941C2

Sida Steyr dump truck ZZ3252M2941C2 Sida Steyr dump truck ZZ3252M2941C2 Sida Steyr dump truck ZZ3252M2941C2 Sida Steyr dump truck ZZ3252M2941C2
