Sinotruk Howo Chinese dump truck (tipper truck) ZZ3317N4667E1L manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3317N4667E1L chassis. Cargo body is 8000/8300/8500 × 970 × 2300 mm, cab seating capacity is 2, tires are 11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 18PR, 315/80R22.5, liquefied natural gas, environmental standard is GB17691-2005 National V / Euro 5, GB18285-2005, GB11340-2005, rated capacity is 15480 kg, with ABS, gross vehicle weight is 31000 kg, total mass of trailer is 15600, 18000 kg, max. speed is 80 km/h, engine: T10.32-50 / T10.34-50 / T12.34-50 / T12.38-50, curb weight is of the China dump truck 15390 kg, wheelbase is 1800+4600+1350, 1800+4575+1400 mm.
Technical Specifications of the China dump truck Sinotruk Howo
Compartment dump mode after unloading. Optional crates appearance of the structure. Optional environmental cover. Optional ordinary cab, the vehicle height is 3450mm; optional high roof cab, the vehicle height is 3800mm. Long car and the car length, departure angle parameters correspond; 11240mm long rear overhang corresponding to 1990mm and 1965mm, and 2200mm overhang 2175mm, 11550mm long rear overhang corresponding to the car length 11450mm corresponding to 2300mm and 2275mm; rear overhang 1990mm, 2200mm and the corresponding 2300mm wheelbase chassis (mm) 1800 + 4600 + 1350, rear overhang 1965mm, 2175mm and 2275mm wheelbase chassis correspondence (mm) 1800 + 4575 + (Note: possible inaccuracies)

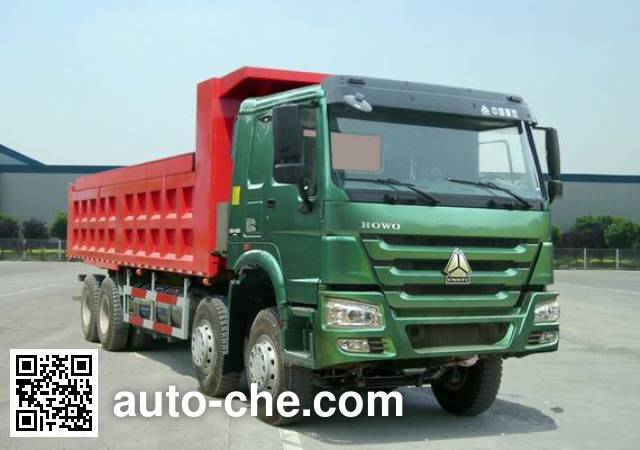

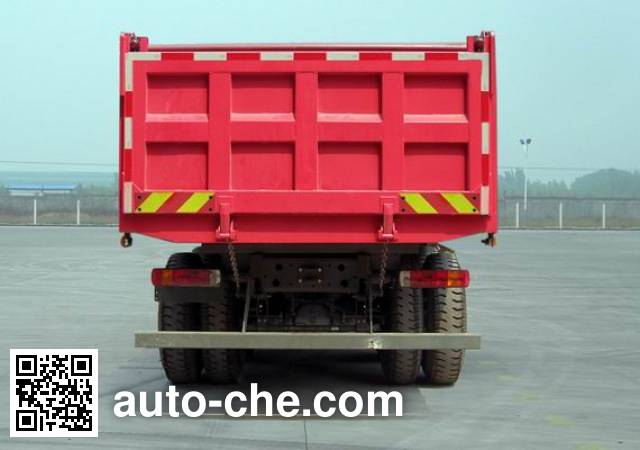

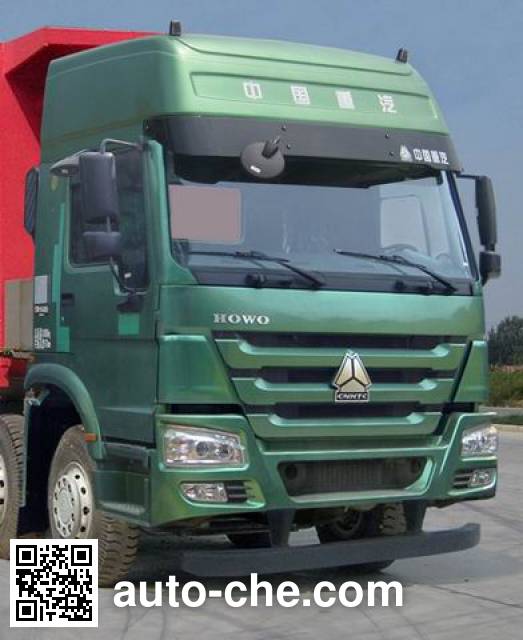

Photo gallery of the China dump truck Sinotruk Howo ZZ3317N4667E1L
