Sida Steyr ZZ3251M5241C1 dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3251M5241C1

ZZ3251M5241C1

Sida Steyr Chinese dump truck (tipper truck) ZZ3251M5241C1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3251M5241C1 chassis. Wheelbase is 5200+1350 mm, engine: WD615.92E / WD615.92C / WD615.97E / WD615.97C, rated capacity is 12370 kg, without ABS, diesel fuel, cab seating capacity is  2, environmental standard is National III / Euro 3, gross vehicle weight is 25000 kg, tires are 11.00-20 18PR, 11.00R20 18PR, 12.00-20 18PR, 12.00R20 16PR, curb weight is of the China dump truck 12500 kg, cargo body is 7300 × 900 × 2300 mm, max. speed is 75 km/h.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3251M5241C1
Vehicle typeDump truck (tipper truck)
VIN
  • LZZAELMH×××××××××
  • LZZAELNH×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3251M5241C1

Engine of the China dump truck Sida Steyr ZZ3251M5241C1

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1WD615.92E9726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2WD615.92C9726 cc198 kW (270 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.97E9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.97C9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China dump truck Sida Steyr ZZ3251M5241C1

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)10120
Overall width (mm)2490
Overall height (mm)3450
Cargo Body Dimensions
Cargo body length (mm)7300
Cargo body width (mm)900
Cargo body height (mm)2300
Weights, Ground Pressure and Capacity
Rated capacity (kg)12370
Curb weight of the China dump truck (kg)12500
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.0
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base and Track
Wheelbase (mm)5200+1350
Front track (mm)1986, 2041
Rear track (mm)1830/1830
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)2250
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)20

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3251M5241C1
Number of axles3
Number of tires10
Tires dimension11.00-20 18PR, 11.00R20 18PR, 12.00-20 18PR, 12.00R20 16PR

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3251M5241C1 (dump truck)
Max. speed75
ABSnone
Cab seating capacity2
Steeringsteering wheel
Leaf springs10 / 12, 10 / -

Additional Information

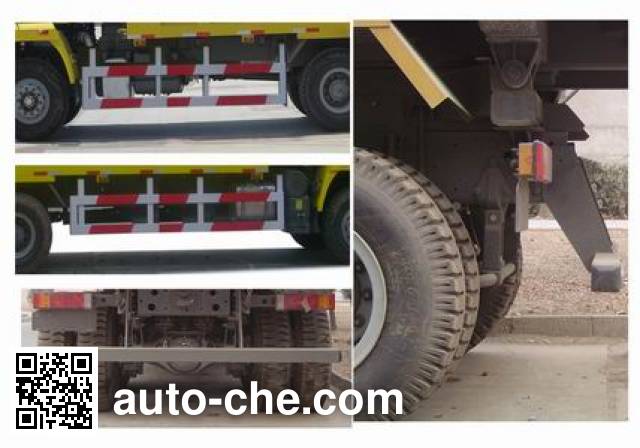

The car optional semi-high roof cab. Container dump mode after unloading. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

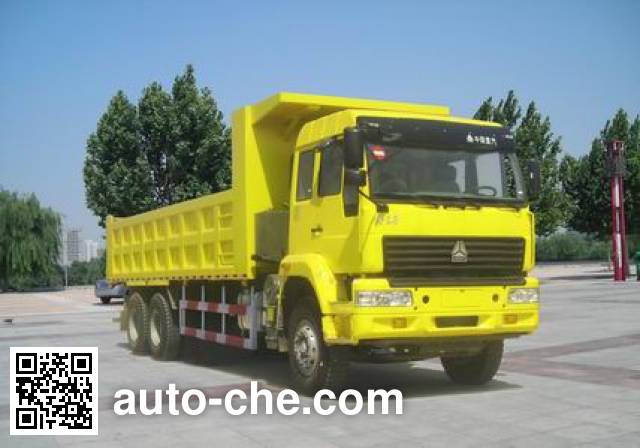

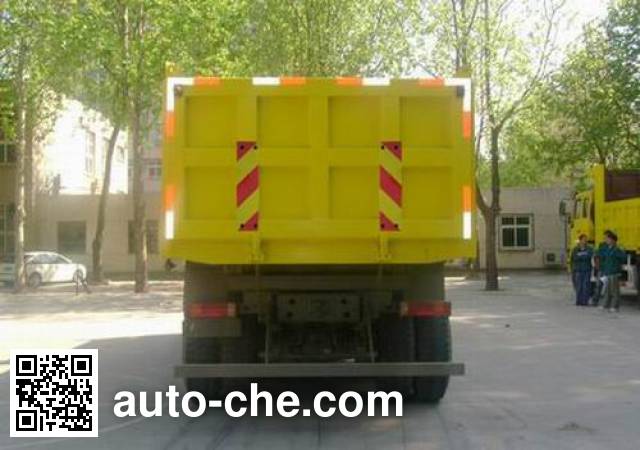

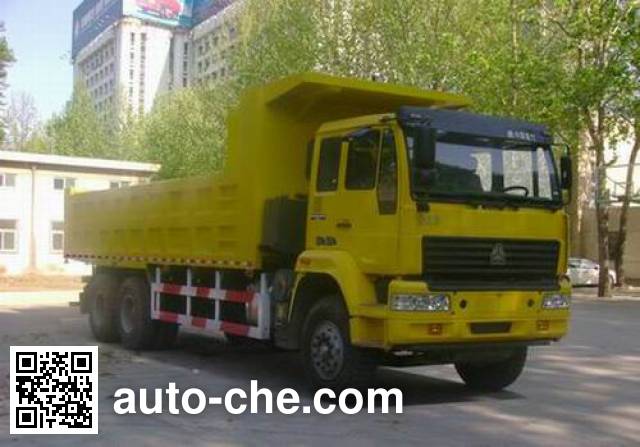

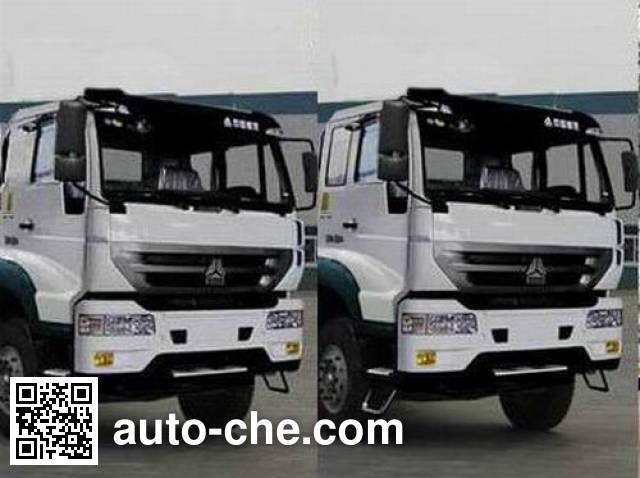

Photo gallery of the China dump truck Sida Steyr ZZ3251M5241C1

Sida Steyr dump truck ZZ3251M5241C1 Sida Steyr dump truck ZZ3251M5241C1 Sida Steyr dump truck ZZ3251M5241C1 Sida Steyr dump truck ZZ3251M5241C1 Sida Steyr dump truck ZZ3251M5241C1
