steyr tipper / dump truck

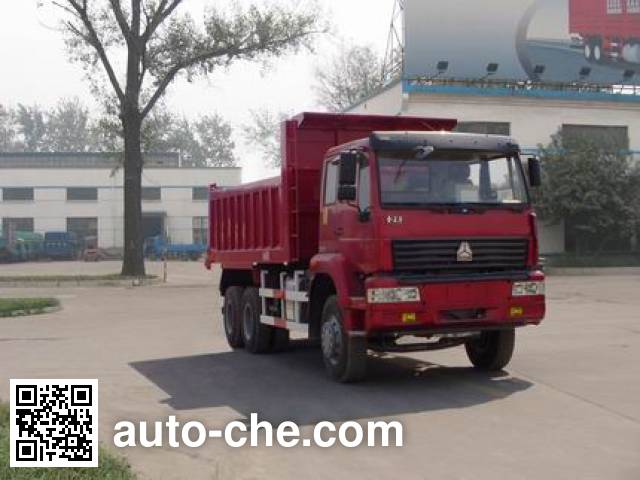

Sida Steyr ZZ3251M4241A dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3251M4241A

ZZ3251M4241A

Sida Steyr Chinese dump truck (tipper truck) ZZ3251M4241A manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3251M4241W chassis. Gross vehicle weight is 25000 kg, max. speed is 75 km/h, cargo body is 5800 × 2300 × 1100 mm, wheelbase is 4200+1350 mm, engine: WD615.62 / WD615.87 / WD615.62 / WD615.87, curb weight is of the China dump truck 12180, 12370 kg, cab seating capacity is  2.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3251M4241A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3251M4241W

Engine of the China dump truck Sida Steyr ZZ3251M4241A

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.87 / WD615.62 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)196 / 213 / 196 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3251M4241A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8655
Overall width (mm)2490
Overall height (mm)3250
Cargo Body Dimensions
Cargo body length (mm)5800
Cargo body width (mm)2300
Cargo body height (mm)1100
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12180, 12370
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.05, 1.02
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)4200+1350
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)1785
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)26

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3251M4241A
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3251M4241A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

Curb weight were without cover and quality time with the cap. The car optional green container with lid, cover the quality of 190kg. The car is only optional Chinese heavy truck engines.
(Note: possible inaccuracies)
