steyr tipper / dump truck

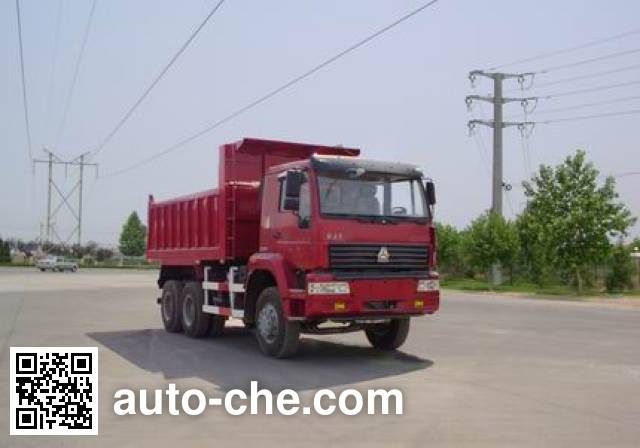

Sida Steyr ZZ3251M2941A dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3251M2941A

ZZ3251M2941A

Sida Steyr Chinese dump truck (tipper truck) ZZ3251M2941A manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3251M2942 chassis. Cargo body is 4800 × 2300 × 1300/1400 mm, max. speed is 75 km/h, curb weight is of the China dump truck 11920, 12080 kg, gross vehicle weight is 25000 kg, engine: WD615.87 / WD615.87 / WD615.62 / WD615.62, wheelbase is 2925+1300, 2925+1350 mm, cab seating capacity is  2.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3251M2941A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3251M2942

Engine of the China dump truck Sida Steyr ZZ3251M2941A

Engine Specifications of the China dump truck
Engine ModelWD615.87 / WD615.87 / WD615.62 / WD615.62
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)213 / 213 / 196 / 196

Dimensions and Weights of the China dump truck Sida Steyr ZZ3251M2941A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)7125
Overall width (mm)2490
Overall height (mm)3450
Cargo Body Dimensions
Cargo body length (mm)4800
Cargo body width (mm)2300
Cargo body height (mm)1300/1400
Weights, Ground Pressure
Curb weight of the China dump truck (kg)11920, 12080
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.09, 1.06
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)2925+1300, 2925+1350
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)1530
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)30

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3251M2941A
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3251M2941A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car is only optional for the 2925 +1350 mm wheelbase chassis, the curb weight is without a roof, and quality time with the cap, respectively. The car optional green container with lid, cover the quality of 160kg. The car is only optional Chinese heavy truck engines.
(Note: possible inaccuracies)
