steyr tipper / dump truck

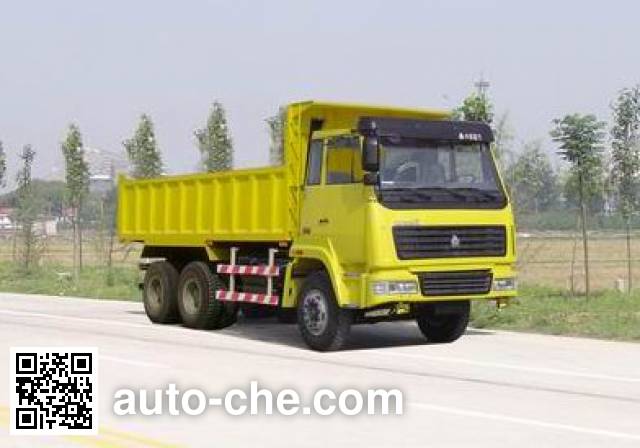

Sida Steyr ZZ3206M3646A dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3206M3646A

ZZ3206M3646A

Sida Steyr Chinese dump truck (tipper truck) ZZ3206M3646A manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3206M3646A chassis. Wheelbase is 3600+1350 mm, cab seating capacity is  2, engine: WD615.62 / WD615.87, gross vehicle weight is 20140 kg, cargo body is 5600/5400 × 2300 × 1000 mm, max. speed is 75 km/h, curb weight is of the China dump truck 10030 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3206M3646A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3206M3646A

Engine of the China dump truck Sida Steyr ZZ3206M3646A

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.87
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3206M3646A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8249/8155
Overall width (mm)2496
Overall height (mm)3270
Cargo Body Dimensions
Cargo body length (mm)5600/5400
Cargo body width (mm)2300
Cargo body height (mm)1000
Weights, Ground Pressure
Curb weight of the China dump truck (kg)10030
Gross vehicle weight (kg)20140
Load factor (payload to weight ratio)1.00
Axle load distribution (kg)6000/14140  (tandem axle)
Wheel Base
Wheelbase (mm)3600+1350
Front/rear overhang (mm)1560/1739, 1560/1645
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)26

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3206M3646A
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3206M3646A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional Steyr semi-high roof cab, corresponding car length 8155mm, cargo box length 5400mm, rear overhang is 1645mm. The car optional green lid container. Vehicle length and box long rear overhang correspondence.
(Note: possible inaccuracies)
