Sida Steyr ZZ3206M3246C2 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

ZZ3206M3246C2

Sida Steyr Chinese dump truck (tipper truck) ZZ3206M3246C2 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3206M3246C2 chassis. Cab seating capacity is  2, gross vehicle weight is 20000 kg, engine: WD615.92 / WD615.93 / WD615.92E / WD615.93E / WD615.97C / WD615.97E / WD615.92C / WD615.93C, max. speed is 75 km/h, curb weight is of the China dump truck 9910 kg, environmental standard is National III / Euro 3, diesel fuel, rated capacity is 9960 kg, without ABS, cargo body is 5400/5100 × 990 × 2300 mm, tires are 11.00-20, 11.00R20, 12.00-20, 12.00R20, wheelbase is 3225+1350 mm.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

Engine of the China dump truck Sida Steyr ZZ3206M3246C2

Dimensions and Weights of the China dump truck Sida Steyr ZZ3206M3246C2

Wheels and Tires

Misc. Specifications

Additional Information

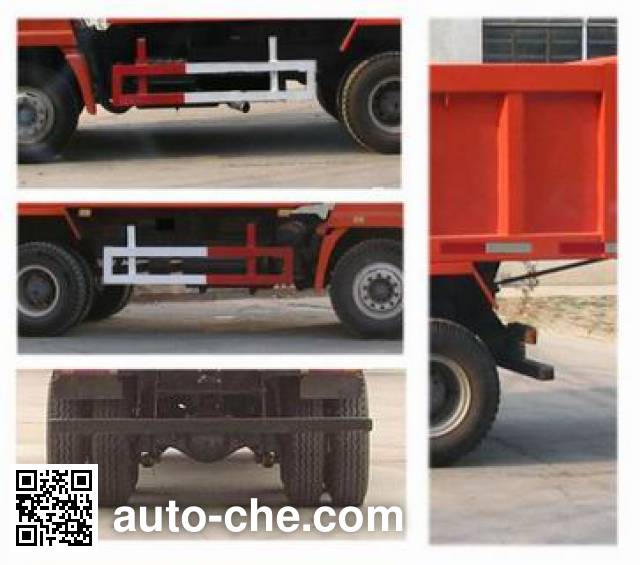

Vehicle length and box long rear overhang, departure angle parameter correspondence. Container dump mode after unloading. When cartons before the move, the vehicle height 3500mm. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

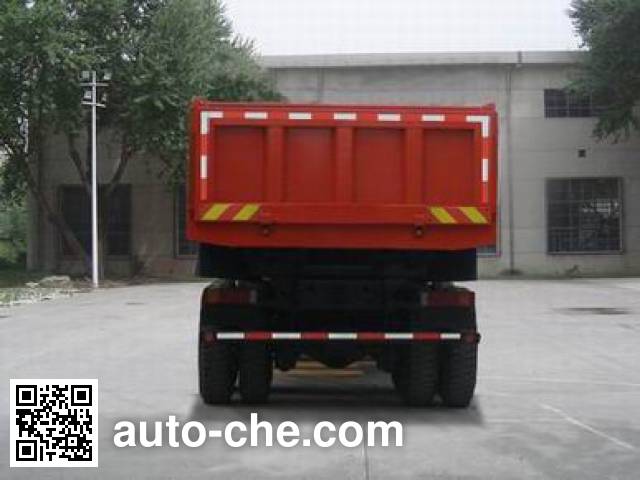

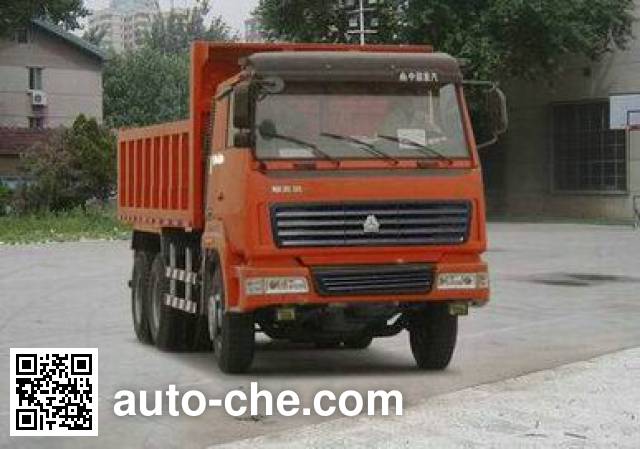

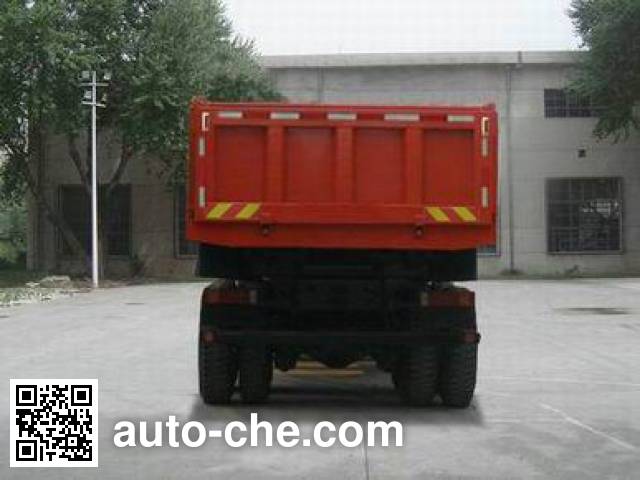

Photo gallery of the China dump truck Sida Steyr ZZ3206M3246C2
