ZZ1313M4661C1
Sida Steyr Chinese cargo truck ZZ1313M4661C1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak Huanghe
Technical Specifications of the China truck Sida Steyr Vehicle Overview Engine of the China truck Sida Steyr ZZ1313M4661C1 # Engine Model Engine Displacement Engine Power Engine Manufacturer 1 WD615.92 9726 cc 196 kW (267 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 2 WD615.93 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 3 WD615.92E 9726 cc 196 kW (267 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 4 WD615.93E 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 5 WD615.97C 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 6 WD615.97E 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 7 WD615.92C 9726 cc 198 kW (270 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 8 WD615.93C 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications Fuel diesel fuel Environmental standards compliance National III / Euro 3
Dimensions and Weights of the China truck Sida Steyr ZZ1313M4661C1 Dimensions and Weight Specifications of the China truck Overall Dimensions of the China truck Overall length (mm) 11965 Overall width (mm) 2490 Overall height (mm) 3280/3830 Cargo Body Dimensions Cargo body length (mm) 9300 Cargo body width (mm) 600/800 Cargo body height (mm) 2326 Weights, Ground Pressure and Capacity Rated capacity (kg) 17580 Curb weight of the China truck (kg) 13290 Gross vehicle weight (kg) 31000 Load factor (payload to weight ratio) 1.33 Axle load distribution (kg) 6500/7000/17500 (tandem axle) Wheel Base and Track Wheelbase (mm) 1800+4600+1350 Front track (mm) 2020/2020, 1939/1939 Rear track (mm) 1820/1820, 1850/1850 Front and Rear Overhang Front overhang (mm) 1525 Rear overhang (mm) 2690 Angle of Approach and Departure Angle of approach (deg.) 16 Angle of departure (deg.) 16
Wheels and Tires Tires and Wheels of the China truck Sida Steyr ZZ1313M4661C1 Number of axles 4 Number of tires 12 Tires dimension 11.00-20, 11.00R20, 12.00-20 16PR, 12.00R20 16PR
Misc. Specifications Miscellaneous Specifications Sida Steyr ZZ1313M4661C1 (cargo truck) Max. speed 90 ABS none Cab seating capacity 2 Steering steering wheel Leaf springs left 14 right 13 / left 14 right 13 / 12, 11 / 11 / 12, 11 / 11 / -, 4 / 4 / -

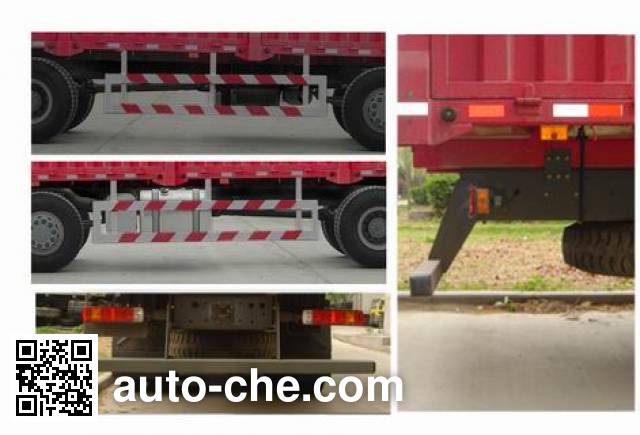

Additional Information When the optional high roof cab vehicle, the vehicle height is 3830mm. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph.(Note: possible inaccuracies)

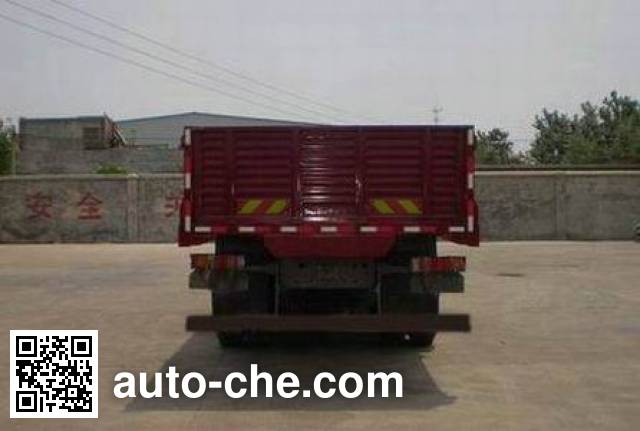

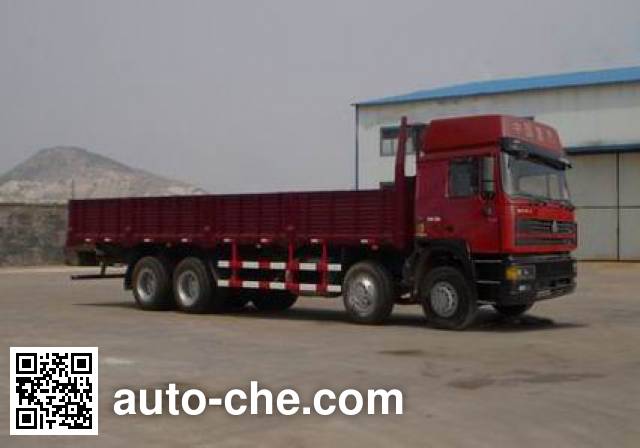

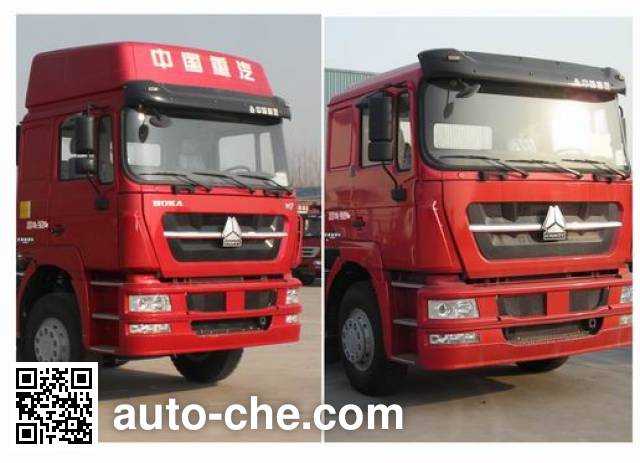

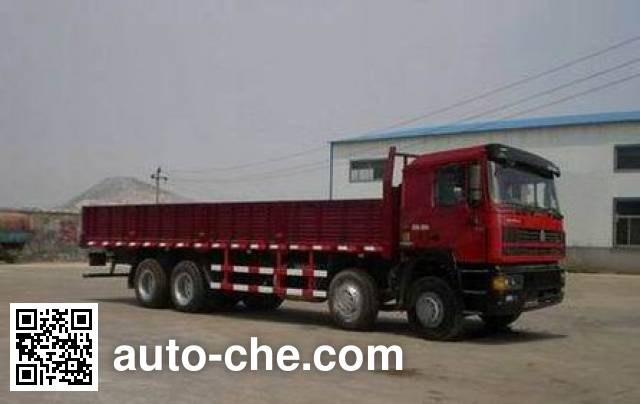

Photo gallery of the China truck Sida Steyr ZZ1313M4661C1 See Also Sida Steyr ZZ1253M56CGE1 (cargo truck)
