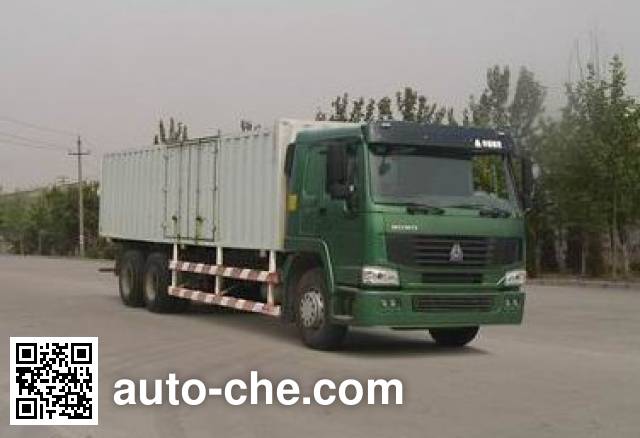

Sinotruk Howo ZZ5257XXYM4147AX box van truck manufactured by Sinotruk Jinan Truck Co., Ltd.
ZZ5257XXYM4147AX
Sinotruk Howo Chinese box van truck ZZ5257XXYM4147AX manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak vehicles, including box van trucks); the box van truck based on ZZ1257M4147AX chassis. Gross vehicle weight is 25000 kg, max. speed is 75 km/h, curb weight is of the China van truck 11130 kg, cab seating capacity is 2, engine: WD615.87, cargo body is 6000 × 2300 × 1800/2000 mm, wheelbase is 4125+1350 mm.
Technical Specifications of the China van truck Sinotruk Howo
Engine of the China van truck Sinotruk Howo ZZ5257XXYM4147AX
Engine Specifications of the China van truck
Engine Model
WD615.87
Engine displacement (cc)
9726
Engine power (kW (hp))
213 (290)
Dimensions and Weights of the China van truck Sinotruk Howo ZZ5257XXYM4147AX
Dimensions and Weight Specifications of the China van truck
Overall Dimensions of the China van truck
Overall length (mm)
8845
Overall width (mm)
2496
Overall height (mm)
3450/3633
Cargo Body Dimensions
Cargo body length (mm)
6000
Cargo body width (mm)
2300
Cargo body height (mm)
1800/2000
Weights, Ground Pressure
Curb weight of the China van truck (kg)
11130
Gross vehicle weight (kg)
25000
Axle load distribution (kg)
7000/18000 (tandem axle)
Wheel Base
Wheelbase (mm)
4125+1350
Front and Rear Overhang
Front overhang (mm)
1500
Rear overhang (mm)
1870
Angle of Approach and Departure
Angle of approach (deg.)
19
Angle of departure (deg.)
23
Wheels and Tires
Tires and Wheels of the China van truck Sinotruk Howo ZZ5257XXYM4147AX
Number of axles
3
Misc. Specifications
Miscellaneous Specifications Sinotruk Howo ZZ5257XXYM4147AX (box van truck)
Max. speed
75
Cab seating capacity
2
Steering
steering wheel
Additional Information
Ho Lok car optional high roof cab, the vehicle height is 3633mm.The car optional flat cargo compartment. Top Compartment closed, not open. (Note: possible inaccuracies)
