Sinotruk Howo ZZ5257CLXM5847C stake truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo stake truck ZZ5257CLXM5847C

ZZ5257CLXM5847C

Sinotruk Howo Chinese stake truck ZZ5257CLXM5847C manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including stake trucks); the stake truck based on ZZ1257M5847C chassis. Cab seating capacity is  2, cargo body is 9280/9500 × 600/800 × 2326 mm, diesel fuel, tires are 11.00-20, 11.00R20 16PR, 12.00-20 16PR, 12.00R20 14PR, curb weight is of the China truck 12180, 12320 kg, engine: WD615.92 / WD615.93 / WD615.92E / WD615.93E / WD615.92C / WD615.93C, gross vehicle weight is 25000 kg, without ABS, wheelbase is 5825+1350, 5800+1400 mm, rated capacity is 12690, 12550 kg, environmental standard is National III / Euro 3, max. speed is 90, 102 km/h.

Technical Specifications of the China truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ5257CLXM5847C
Vehicle typeStake truck
VIN
  • LZZ5BLMJ×××××××××
  • LZZ5BMMJ×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1257M5847C

Engine of the China truck Sinotruk Howo ZZ5257CLXM5847C

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1WD615.929726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2WD615.939726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.92E9726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.93E9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
5WD615.92C9726 cc198 kW (270 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
6WD615.93C9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China truck Sinotruk Howo ZZ5257CLXM5847C

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)11963
Overall width (mm)2496
Overall height (mm)3900
Cargo Body Dimensions
Cargo body length (mm)9280/9500
Cargo body width (mm)600/800
Cargo body height (mm)2326
Weights, Ground Pressure and Capacity
Rated capacity (kg)12690, 12550
Curb weight of the China truck (kg)12180, 12320
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.05, 1.02
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base and Track
Wheelbase (mm)5825+1350, 5800+1400
Front track (mm)2022, 2041
Rear track (mm)1830/1830
Front/rear overhang (mm)1500/3288, 1500/3263
Angle of Approach and Departure
Angle of approach (deg.)16
Angle of departure (deg.)9

Wheels and Tires

Tires and Wheels of the China truck Sinotruk Howo ZZ5257CLXM5847C
Number of axles3
Number of tires10
Tires dimension11.00-20, 11.00R20 16PR, 12.00-20 16PR, 12.00R20 14PR

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ5257CLXM5847C (stake truck)
Max. speed90, 102
ABSnone
Cab seating capacity2
Steeringsteering wheel
Leaf springs10 / 12

Additional Information

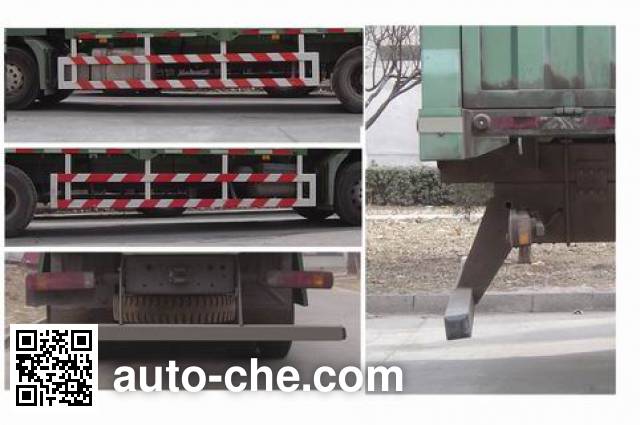

The car optional high roof cab. Cargo body height and quality parameters set out mass utilization factor correspondence. Cargo floor from the top of the fence to 2270mm. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

Photo gallery of the China truck Sinotruk Howo ZZ5257CLXM5847C

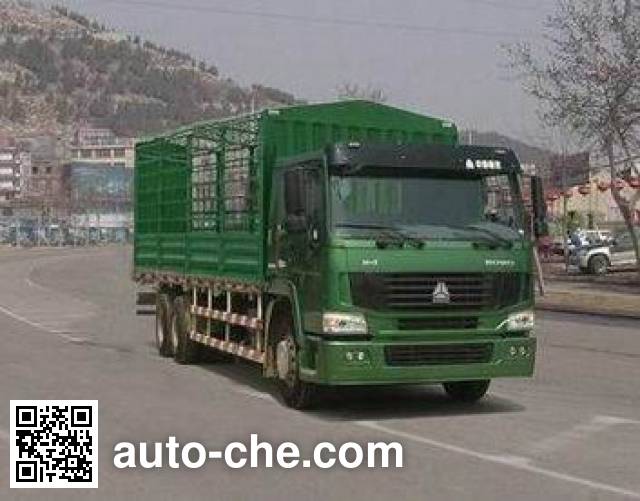

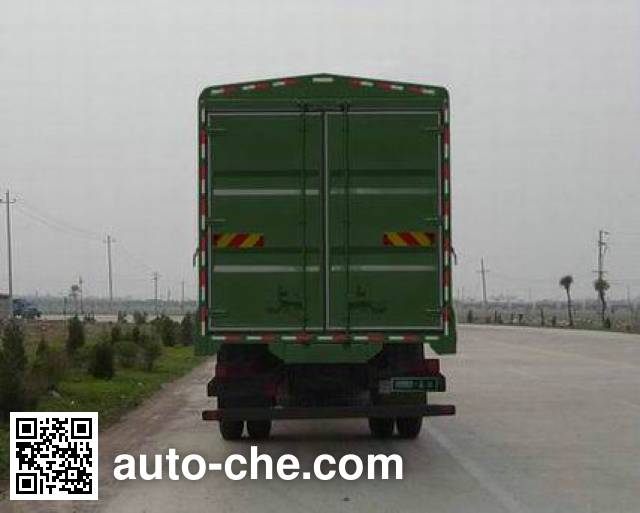

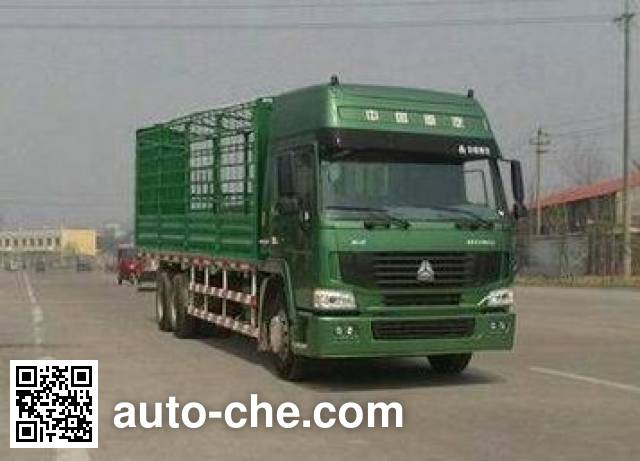

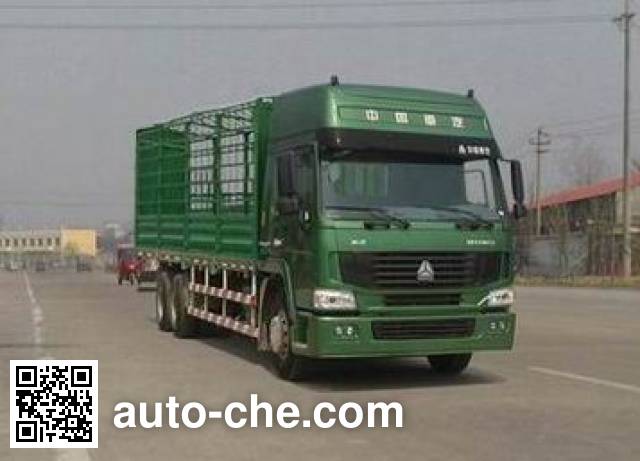

Sinotruk Howo stake truck ZZ5257CLXM5847C Sinotruk Howo stake truck ZZ5257CLXM5847C Sinotruk Howo stake truck ZZ5257CLXM5847C Sinotruk Howo stake truck ZZ5257CLXM5847C Sinotruk Howo stake truck ZZ5257CLXM5847C
