sinotruk stake body cargo truck

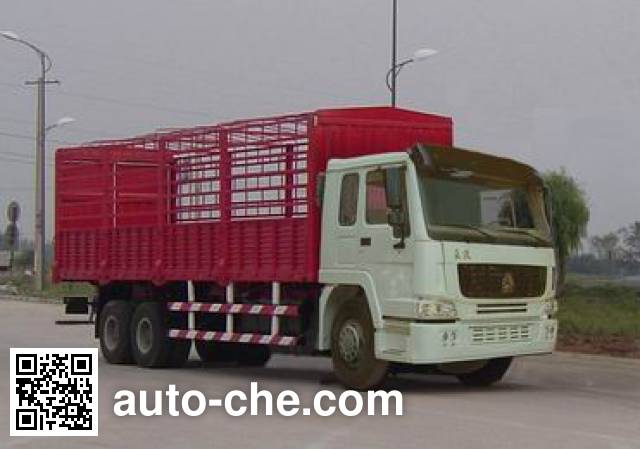

Sinotruk Howo ZZ5257CLXM5241W stake truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo stake truck ZZ5257CLXM5241W

ZZ5257CLXM5241W

Sinotruk Howo Chinese stake truck ZZ5257CLXM5241W manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including stake trucks); the stake truck based on ZZ1257M5241W chassis. Gross vehicle weight is 25000 kg, wheelbase is 5225+1350, 5200+1400 mm, cargo body is 8480 × 2300 × 800 mm, max. speed is 90, 102 km/h, curb weight is of the China truck 12060 kg, engine: WD615.62 / WD615.87, cab seating capacity is  2.

Technical Specifications of the China truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ5257CLXM5241W
Vehicle typeStake truck
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1257M5241W

Engine of the China truck Sinotruk Howo ZZ5257CLXM5241W

Engine Specifications of the China truck
Engine ModelWD615.62 / WD615.87
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 213

Dimensions and Weights of the China truck Sinotruk Howo ZZ5257CLXM5241W

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)11184
Overall width (mm)2496
Overall height (mm)3900
Cargo Body Dimensions
Cargo body length (mm)8480
Cargo body width (mm)2300
Cargo body height (mm)800
Weights
Curb weight of the China truck (kg)12060
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.07
Wheel Base
Wheelbase (mm)5225+1350, 5200+1400
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)3109, 3084
Angle of Approach and Departure
Angle of approach (deg.)16
Angle of departure (deg.)10

Wheels and Tires

Tires and Wheels of the China truck Sinotruk Howo ZZ5257CLXM5241W
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ5257CLXM5241W (stake truck)
Max. speed90, 102
Cab seating capacity2
Steeringsteering wheel

Additional Information

Cargo floor from the top of the fence height 2270mm; car optional cover. The car should be installed body reflective logo on the side and rear.
(Note: possible inaccuracies)
