Sinotruk Howo ZZ5247CLXN3867C1 stake truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo stake truck ZZ5247CLXN3867C1

ZZ5247CLXN3867C1

Sinotruk Howo Chinese stake truck ZZ5247CLXN3867C1 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including stake trucks); the stake truck based on ZZ1247N3867C1 chassis. Tires are 11.00-20, 11.00R20, 12.00-20, 12.00R20, without ABS, engine: WD615.95E / WD615.95C / WD615.96E / WD615.96C, curb weight is of the China truck 11790 kg, cargo body is 8600 × 800 × 2326 mm, cab seating capacity is  2, 3, total mass of trailer is 9900 kg, environmental standard is National III / Euro 3, rated capacity is 12080, 12015 kg, max. speed is 102, 95 km/h, diesel fuel, wheelbase is 1800+3800+1350, 1800+3775+1400 mm, gross vehicle weight is 24000 kg.

Technical Specifications of the China truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ5247CLXN3867C1
Vehicle typeStake truck
VIN
  • LZZ5BNND×××××××××
  • LZZ5BNSD×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1247N3867C1

Engine of the China truck Sinotruk Howo ZZ5247CLXN3867C1

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1WD615.95E9726 cc247 kW (336 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2WD615.95C9726 cc249 kW (339 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.96E9726 cc276 kW (376 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.96C9726 cc279 kW (380 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China truck Sinotruk Howo ZZ5247CLXN3867C1

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)11182
Overall width (mm)2496
Overall height (mm)3950
Cargo Body Dimensions
Cargo body length (mm)8600
Cargo body width (mm)800
Cargo body height (mm)2326
Weights, Ground Pressure and Capacity
Rated capacity (kg)12080, 12015
Curb weight of the China truck (kg)11790
Gross vehicle weight (kg)24000
Load factor (payload to weight ratio)1.03
Axle load distribution (kg)5000/5500/13500  (tandem axle)
Total mass of trailer (kg)9900
Wheel Base and Track
Wheelbase (mm)1800+3800+1350, 1800+3775+1400
Front track (mm)2022/2022, 2041/2041
Rear track (mm)1830/1830
Front/rear overhang (mm)1500/2732, 1500/2707
Angle of Approach and Departure
Angle of approach (deg.)16
Angle of departure (deg.)14

Wheels and Tires

Tires and Wheels of the China truck Sinotruk Howo ZZ5247CLXN3867C1
Number of axles4
Number of tires12
Tires dimension11.00-20, 11.00R20, 12.00-20, 12.00R20

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ5247CLXN3867C1 (stake truck)
Max. speed102, 95
ABSnone
Cab seating capacity2, 3
Steeringsteering wheel
Leaf springs4 / 4 / -, 4 / 4 / 12, 11 / 11 / 12, 11 / 11 / -

Additional Information

The car optional high roof cab. By the number of prospective quality parameters correspond with the rated load. Cargo floor from the top of the fence to 2370mm. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

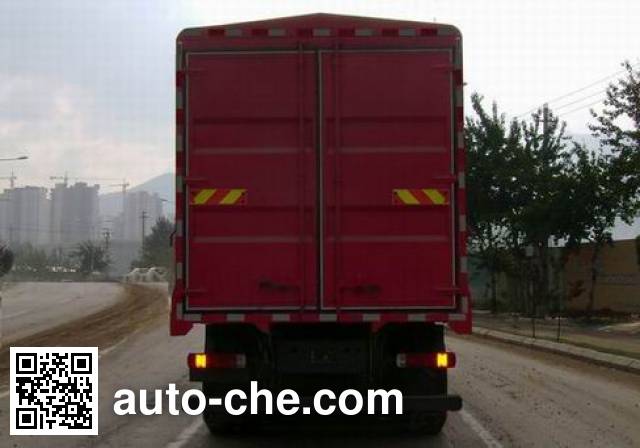

Photo gallery of the China truck Sinotruk Howo ZZ5247CLXN3867C1
