Sinotruk Howo ZZ5167XXYG3815D1 box van truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.
ZZ5167XXYG3815D1
Sinotruk Howo Chinese box van truck ZZ5167XXYG3815D1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including box van trucks); the box van truck based on ZZ1167G3815D1 chassis. Cargo body is 4850 × 2300/2400 × 2300/2420/2450 mm, with ABS, max. speed is 95 km/h, environmental standard is , gross vehicle weight is 15795 kg, diesel fuel, tires are 9.00-20, 9.00R20, rated capacity is 9870 kg, engine: YC4E140-42 / YC4E160-42, curb weight is of the China van truck 5730 kg, cab seating capacity is 3, wheelbase is 3800 mm.
Technical Specifications of the China van truck Sinotruk Howo
Engine of the China van truck Sinotruk Howo ZZ5167XXYG3815D1
#
Engine Model
Engine Displacement
Engine Power
Engine Manufacturer
1
YC4E140-42
4260 cc
103 kW (141 hp)
Guangxi Yuchai Machinery Co., Ltd.
2
YC4E160-42
4260 cc
118 kW (161 hp)
Guangxi Yuchai Machinery Co., Ltd.
General Engine Specifications
Fuel
diesel fuel
Environmental standards compliance
Dimensions and Weights of the China van truck Sinotruk Howo ZZ5167XXYG3815D1
Dimensions and Weight Specifications of the China van truck
Overall Dimensions of the China van truck
Overall length (mm)
6995
Overall width (mm)
2418/2498/2550
Overall height (mm)
3550/3650
Cargo Body Dimensions
Cargo body length (mm)
4850
Cargo body width (mm)
2300/2400
Cargo body height (mm)
2300/2420/2450
Weights, Ground Pressure and Capacity
Rated capacity (kg)
9870
Curb weight of the China van truck (kg)
5730
Gross vehicle weight (kg)
15795
Load factor (payload to weight ratio)
1.75
Axle load distribution (kg)
5850/9945
Wheel Base and Track
Wheelbase (mm)
3800
Front track (mm)
1886
Rear track (mm)
1845
Front and Rear Overhang
Front overhang (mm)
1240
Rear overhang (mm)
1955
Angle of Approach and Departure
Angle of approach (deg.)
27
Angle of departure (deg.)
22
Wheels and Tires
Tires and Wheels of the China van truck Sinotruk Howo ZZ5167XXYG3815D1
Number of axles
2
Number of tires
6
Tires dimension
9.00-20, 9.00R20
Misc. Specifications
Miscellaneous Specifications Sinotruk Howo ZZ5167XXYG3815D1 (box van truck)
Max. speed
95
ABS
have
Cab seating capacity
3
Steering
steering wheel
Leaf springs
8 / 10+8, 9 / 12+9, 9 / 11+7, 11 / 12+9
Additional Information
The car and the vehicle width parameter container width correspondence. Size height parameters correspond to the height of the vehicle within the container fence. Top cargo compartment closed, not open. The car optional flat cargo box structure. Optional car bumper. Optional single-car side-door structure. The car may not be optional side door structure. The car may not be optional shroud. Side guards used material Material: Q235A, connections bolted. Rear protective device materials Material: Q235A, bolted connections, cross-sectional dimensions of 100mm × 50mm, ground clearance is 530mm. The optional rear-view mirror. Fuel tank and battery box positions are interchangeable. ABS system model XH-KQ4S4M-E01, the production enterprises in Guangzhou City, the Xi Automotive Electronics Equipment Co., Ltd. (Note: possible inaccuracies)

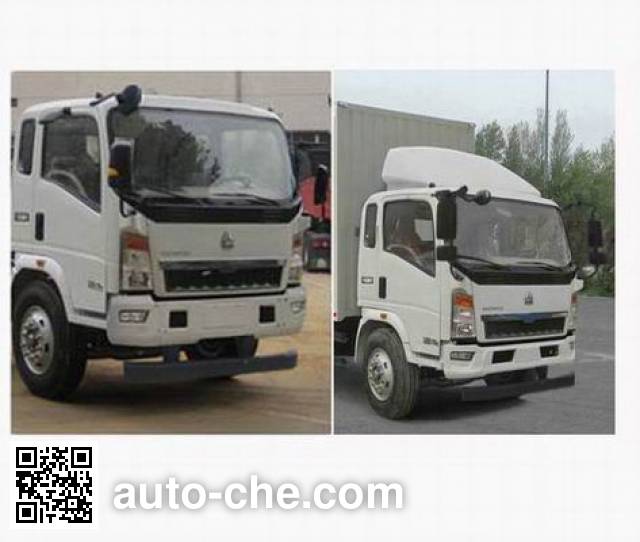

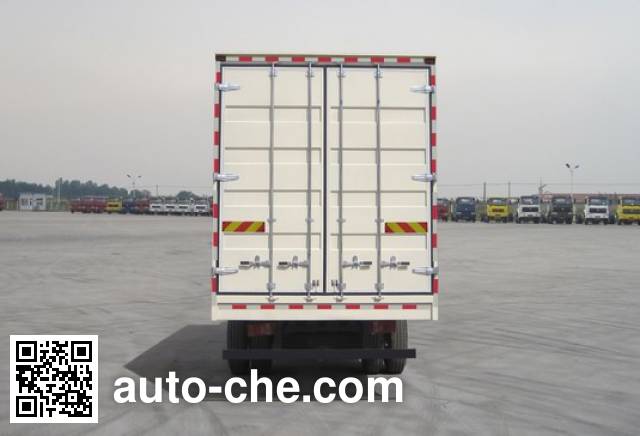

Photo gallery of the China van truck Sinotruk Howo ZZ5167XXYG3815D1
