Sinotruk Howo Chinese stake truck ZZ5147CCYG381CE1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including stake trucks); the stake truck based on ZZ1147G381CE1 chassis. Wheelbase is 3800 mm, max. speed is 95 km/h, cargo body is 5150/4850 × 550 × 2150/2300/2450 mm, gross vehicle weight is 14060 kg, environmental standard is GB17691-2005 National V / Euro 5, GB3847-2005, engine: ISF3.8s5154 / ISF3.8s5168 / MC05.16-50 / MC05.18-50 / CY4SK151, with ABS, diesel fuel, rated capacity is 9830, 9765 kg, tires are 8.25R20, 9.00R20, 255/70R22.5, 10R22.5, curb weight is of the China truck 4100 kg, cab seating capacity is 2, 3.
Technical Specifications of the China truck Sinotruk Howo
The optional single-row cab, corresponding to the size of container steeplechase inner length 5150mm; when the optional half row cab, corresponding to the size of container steeplechase inner length 4850mm. Optional insurance, optional front cover, optional rear-view mirror, optional cargo box appearance of the structure, optional shroud. May not be an option tight rope. Cab ride quality parameters correspond with the rated load. Dimensions width within wide parameters correspond Compartment steeplechase in size. High Dimension 3400,3550 and 3650 respectively, the compartment floor to the top height of 2150,2300 and 2400. Side guards made of material used Q235A, connections bolted; the rear guard of the materials is made of Q235A, bolted connections, cross-sectional dimensions of 100mm × 50m (Note: possible inaccuracies)

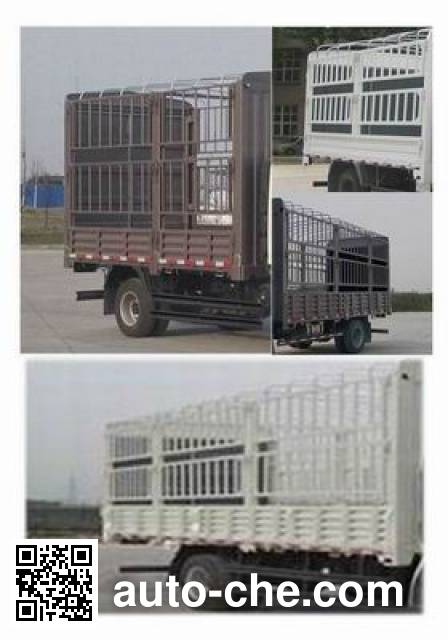

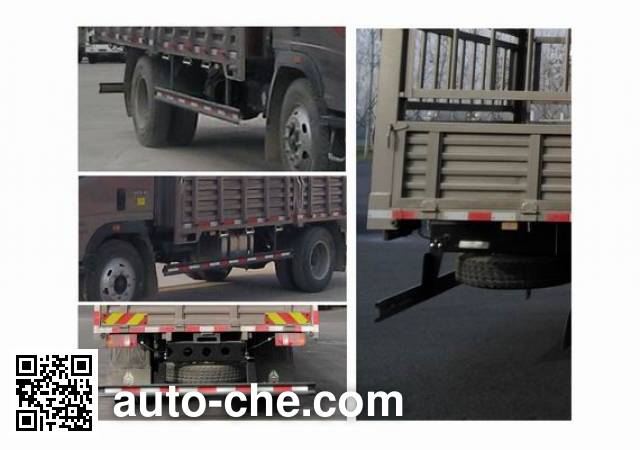

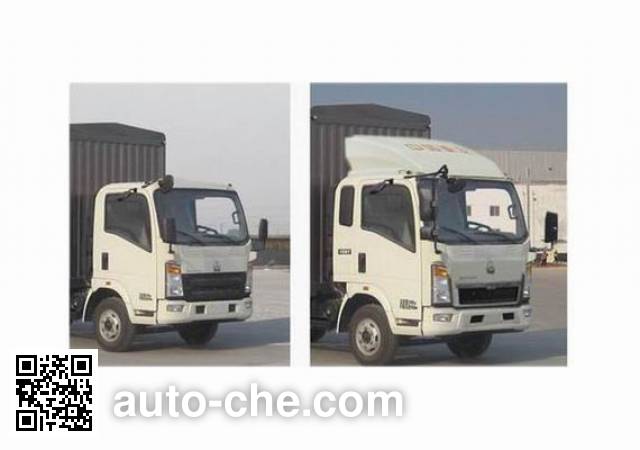

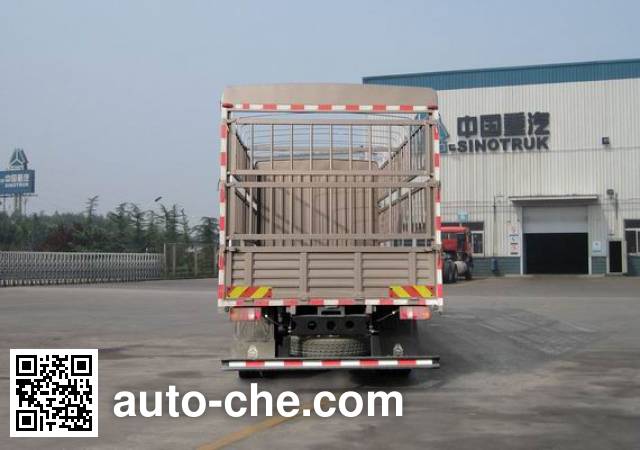

Photo gallery of the China truck Sinotruk Howo ZZ5147CCYG381CE1
