howo tractor unit

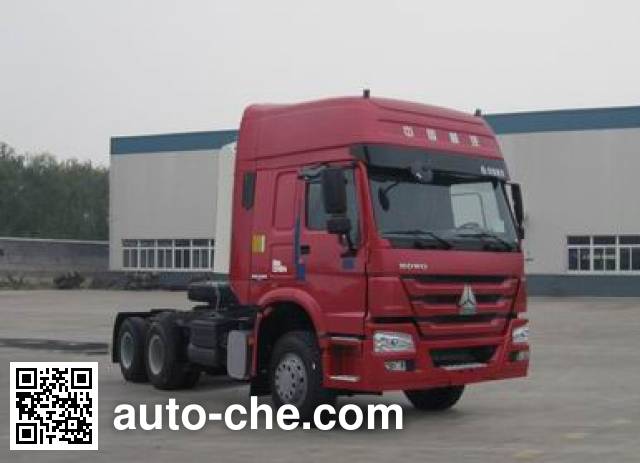

Sinotruk Howo ZZ4257V3847C1CH tractor unit manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo tractor unit ZZ4257V3847C1CH

ZZ4257V3847C1CH

Sinotruk Howo Chinese tractor unit ZZ4257V3847C1CH manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including tractor units). Cab seating capacity is  2, 3, engine: T12.42-30, wheelbase is 3825+1350 mm, max. speed is 102 km/h, environmental standard is National III / Euro 3, tires are 11.00-20, 11.00R2016PR, 12.00-2016PR, 12.00R2014PR, 295/80R22.516PR, compressed natural gas, curb weight is of the China tractor unit 10700 kg, gross vehicle weight is 25000 kg, total mass of trailer is 38100 kg, fifth wheel capacity is 14170, 14105 kg.

Technical Specifications of the China tractor unit Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ4257V3847C1CH
Vehicle typeTractor unit
VIN
  • LZZ5CL3D×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.

Engine of the China tractor unit Sinotruk Howo ZZ4257V3847C1CH

Engine Specifications of the China tractor unit
Engine ModelT12.42-30
Engine displacement (cc)11596
Engine power (kW (hp))309 (421)
Fuelcompressed natural gas
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China tractor unit Sinotruk Howo ZZ4257V3847C1CH

Dimensions and Weight Specifications of the China tractor unit
Overall Dimensions of the China tractor unit
Overall length (mm)7390
Overall width (mm)2496
Overall height (mm)2958/3718/3563/3668
Weights, Ground Pressure and Capacity
Curb weight of the China tractor unit (kg)10700
Fifth wheel load capacity (kg)14170, 14105
Gross vehicle weight (kg)25000
Axle load distribution (kg)7000/18000  (tandem axle)
Total mass of trailer (kg)38100
Wheel Base and Track
Wheelbase (mm)3825+1350
Front track (mm)2022, 2041
Rear track (mm)1830/1830
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)715
Angle of Approach and Departure
Angle of approach (deg.)16
Angle of departure (deg.)50

Wheels and Tires

Tires and Wheels of the China tractor unit Sinotruk Howo ZZ4257V3847C1CH
Number of axles3
Number of tires10
Tires dimension11.00-20, 11.00R2016PR, 12.00-2016PR, 12.00R2014PR, 295/80R22.516PR

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ4257V3847C1CH (tractor unit)
Max. speed102
Cab seating capacity2, 3
Steeringsteering wheel
Leaf springs3 / -, 3 / 5, 3 / 12, 4 / -, 4 / 12, 9 / 12

Additional Information

Optional half-height roof cab car, the vehicle height 3718mm, while from time to optional cover, the vehicle height 2958mm; optional high roof cab, the vehicle height 3668mm, while the optional side may wind deflector, the vehicle height 3563mm. Net engine power T12.42-30 is 305kW. Cab seats and saddles maximum permissible load mass parameter correspondence. ABS system model 4460046300, manufacturer of WABCO Vehicle Control Systems (China) Limited. Optional rear cab may only four cylinders; may elect four cylinder loading rack on the left. Should be installed tachograph.
(Note: possible inaccuracies)
