Howo, Sitrak, CNHTC, Hania, Homan dump trucks, tractors and cargo trucks (China). Unofficial reference guide

howo tractor unit

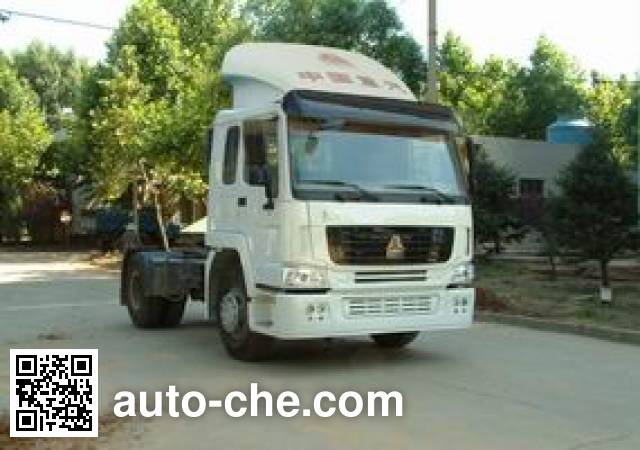

Sinotruk Howo ZZ4187S3511W tractor unit manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo tractor unit ZZ4187S3511W

ZZ4187S3511W

Sinotruk Howo Chinese tractor unit ZZ4187S3511W manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including tractor units); the tractor unit based on ZZ4187S3511W chassis. Fifth wheel capacity is 10690 kg, cab seating capacity is  2, diesel fuel, wheelbase is 3500 mm, tires are 11.00-20, 11.00R20, 12.00-20, 12.00R20, engine: WD615.46 / WD615.46 / WD615.47 / WD615.47 / D12.38, gross vehicle weight is 18000 kg, environmental standard is National II / Euro 2, curb weight is of the China tractor unit 7180 kg, total mass of trailer is 38600, 38600 kg, max. speed is 92, 102 km/h.

Technical Specifications of the China tractor unit Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ4187S3511W
Vehicle typeTractor unit
VIN
  • LZZ5CCSC
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ4187S3511W

Engine of the China tractor unit Sinotruk Howo ZZ4187S3511W

Engine Specifications of the China tractor unit
Engine ModelWD615.46 / WD615.46 / WD615.47 / WD615.47 / D12.38
Engine displacement (cc)9726 / 9726 / 9726 / 9726 / 11596
Engine power (kW)266 / 266 / 273 / 273 / 279
Fueldiesel fuel
Environmental standards complianceNational II / Euro 2

Dimensions and Weights of the China tractor unit Sinotruk Howo ZZ4187S3511W

Dimensions and Weight Specifications of the China tractor unit
Overall Dimensions of the China tractor unit
Overall length (mm)6110
Overall width (mm)2496
Overall height (mm)2958/3718
Weights, Ground Pressure and Capacity
Curb weight of the China tractor unit (kg)7180
Fifth wheel load capacity (kg)10690
Gross vehicle weight (kg)18000
Total mass of trailer (kg)38600, 38600
Wheel Base and Track
Wheelbase (mm)3500
Front track (mm)2022, 2041
Rear track (mm)1830
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)1110
Angle of Approach and Departure
Angle of approach (deg.)16
Angle of departure (deg.)42

Wheels and Tires

Tires and Wheels of the China tractor unit Sinotruk Howo ZZ4187S3511W
Number of axles2
Number of tires6
Tires dimension11.00-20, 11.00R20, 12.00-20, 12.00R20

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ4187S3511W (tractor unit)
Max. speed92, 102
Cab seating capacity2
Steeringsteering wheel
Leaf springs9 / 9+6

Additional Information

When the optional D12.38 engine, a top speed of 92km / h.
(Note: possible inaccuracies)
