Sinotruk Howo ZZ4187N3517N1B tractor unit manufactured by Sinotruk Jinan Truck Co., Ltd.

ZZ4187N3517N1B

Sinotruk Howo Chinese tractor unit ZZ4187N3517N1B manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak vehicles, including tractor units). Cab seating capacity is  2, 3, max. speed is 80, 101 km/h, diesel fuel, wheelbase is 3500, 3600 mm, with ABS, environmental standard is National III / Euro 3, fifth wheel capacity is 11070, 11005 kg, tires are 11.00R20, 12.00R20, 315/80R22.5, curb weight is of the China tractor unit 6800 kg, gross vehicle weight is 18000 kg, total mass of trailer is 35000 kg.

Technical Specifications of the China tractor unit Sinotruk Howo

Vehicle Overview

Engine of the China tractor unit Sinotruk Howo ZZ4187N3517N1B

Dimensions and Weights of the China tractor unit Sinotruk Howo ZZ4187N3517N1B

Wheels and Tires

Misc. Specifications

Additional Information

The car may not be optional Wind deflector, the vehicle height is 3745mm; the car also optional extended cab, the vehicle height 3560mm, while the Wind deflector is optional equipment, the vehicle height is 3230mm. By the number of quasi-saddle maximum permissible load mass parameter correspondence.Optional car engine WD615.95E, WD615.95NE, D10.34-31, D12.34-30, the net power, respectively 245kW, 245kW, 247kW, 245kW, VIN for LZZ5CCNC ××××××××× (wheelbase 3500mm) and LZZ5CCND ××××××××× (wheelbase 3600mm); optional engine WD615.96E, WD615.96NE, D10.38-30, when D12.38-30, respectively, net power 274kW, 274kW, 277kW, 275kW, VIN for LZZ5CCSC ××××××××× (wheelbase 3500mm) and LZZ5CCSD ××××××××× (wheelbase 3600mm). When option D12 series engine, fuel tank and other parts of the vehicle to the left. Wheelbase and overall length correspondence. Optional high car bumper. ABS System Model: 446004 ××××; ABS system Manufacturer: Wei Boke Vehicle Control Systems (China) Limited. The car engine is D10.38-30, D12.38-30, WD615.96NE, WD615.95E, when WD615.96E, optional speed limiting device, speed 80km / h. Install tachograph has satellite positioning functions. Optional pre-exhaust.
(Note: possible inaccuracies)

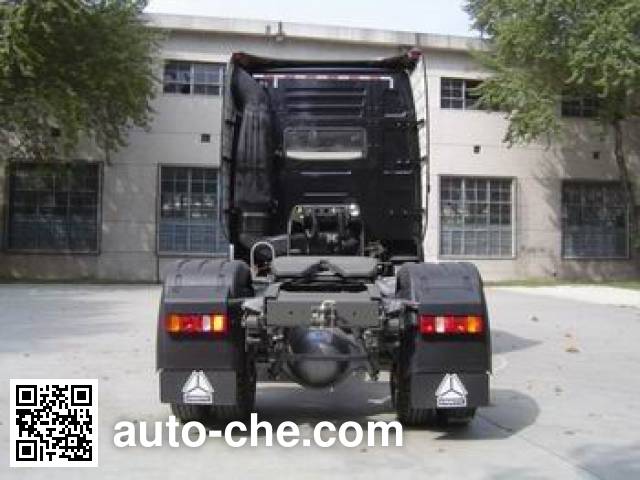

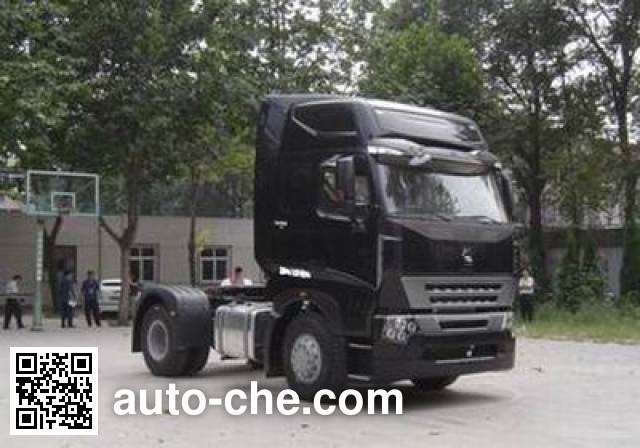

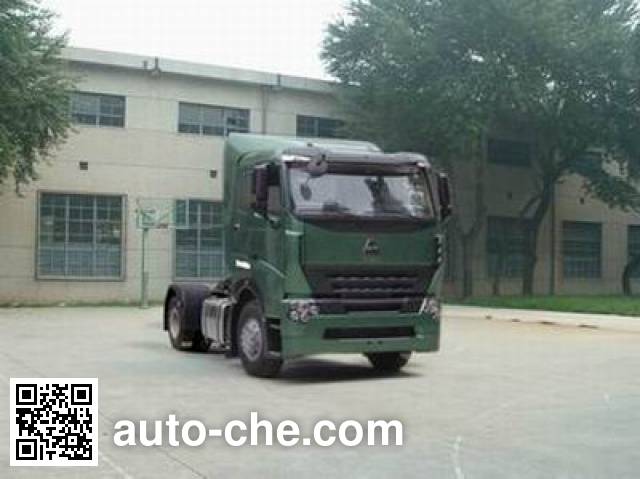

Photo gallery of the China tractor unit Sinotruk Howo ZZ4187N3517N1B
