Sinotruk Howo Chinese dump truck (tipper truck) ZZ3317N3267C1 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3317N3267C1 chassis. Cargo body is 6800 × 1200 × 2300 mm, max. speed is 75 km/h, without ABS, environmental standard is National III / Euro 3, tires are 11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 18PR, diesel fuel, rated capacity is 15740, 15510 kg, curb weight is of the China dump truck 15130, 15360 kg, engine: WD615.95 / WD615.96 / WD615.95E / WD615.96E / WD615.95C / WD615.96C / WD615.95NE / WD615.96NE, wheelbase is 1800+3200+1350, 1800+3200+1400 mm, cab seating capacity is 2, gross vehicle weight is 31000 kg.
Technical Specifications of the China dump truck Sinotruk Howo
left 14 right 13 / left 14 right 13 / 12, 4 / 4 / -, 11 / 11 / 12, 11 / 11 / -, 4 / 4 / 12, left 14 right 13 / left 14 right 13 / -
Additional Information

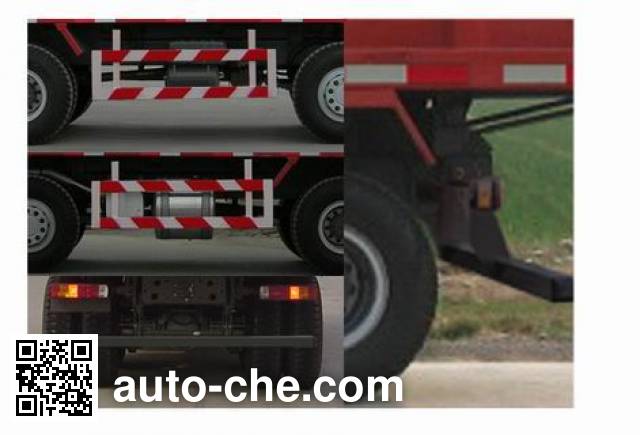

Container dump mode after unloading. Curb weight were without cover and quality time with the cap. The car optional green container with lid, cover the quality of 230kg. The car left the optional second-class chassis 14 R 13/14 Left Right 13 / - when the leaf spring, corresponding wheelbase 1800 +3200 +1400, rear overhang is 1845mm. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph. (Note: possible inaccuracies)

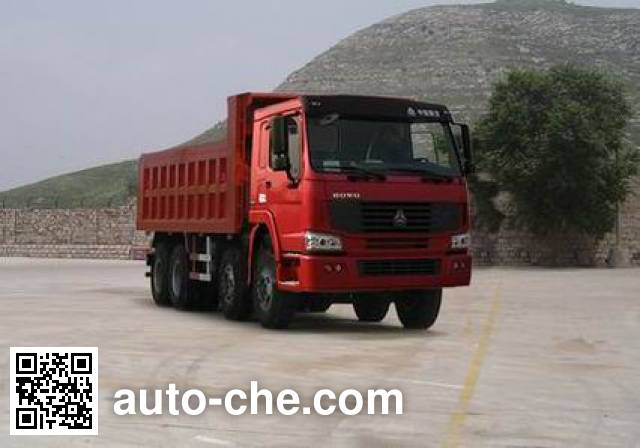

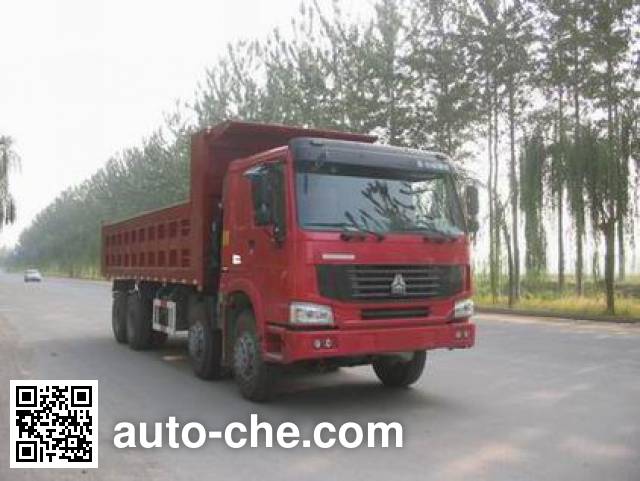

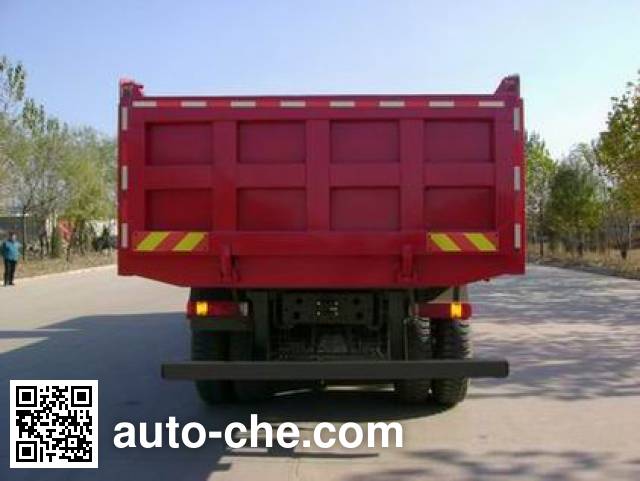

Photo gallery of the China dump truck Sinotruk Howo ZZ3317N3267C1
