ZZ3317N3068W
Sinotruk Howo Chinese dump truck (tipper truck) ZZ3317N3068W manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak
Technical Specifications of the China dump truck Sinotruk Howo Vehicle Overview Engine of the China dump truck Sinotruk Howo ZZ3317N3068W # Engine Model Engine Displacement Engine Power Engine Manufacturer 1 P11C-UH 10520 cc 240 kW (327 hp) Shanghai Hino Engine Co., Ltd. 2 WD615.93 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 3 WD615.95 9726 cc 247 kW (336 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 4 WD615.93E 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 5 WD615.95E 9726 cc 247 kW (336 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 6 WD615.93C 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 7 WD615.95C 9726 cc 249 kW (339 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 8 WD615.97C 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 9 WD615.97E 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications Fuel diesel fuel Environmental standards compliance National III / Euro 3
Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3317N3068W Dimensions and Weight Specifications of the China dump truck Overall Dimensions of the China dump truck Overall length (mm) 9445 Overall width (mm) 2496 Overall height (mm) 3190/3406 Cargo Body Dimensions Cargo body length (mm) 6500 Cargo body width (mm) 1280 Cargo body height (mm) 2300 Weights, Ground Pressure and Capacity Rated capacity (kg) 15890 Curb weight of the China dump truck (kg) 14980 Gross vehicle weight (kg) 31000 Load factor (payload to weight ratio) 1.06 Axle load distribution (kg) 6300/7000/17700 (tandem axle) Wheel Base and Track Wheelbase (mm) 1800+3000+1350 Front track (mm) 2022/2022, 2041/2041 Rear track (mm) 1830/1830 Front and Rear Overhang Front overhang (mm) 1500 Rear overhang (mm) 1795 Angle of Approach and Departure Angle of approach (deg.) 19 Angle of departure (deg.) 26
Wheels and Tires Tires and Wheels of the China dump truck Sinotruk Howo ZZ3317N3068W Number of axles 4 Number of tires 12 Tires dimension 11.00-20, 12.00-20 18PR
Misc. Specifications Miscellaneous Specifications Sinotruk Howo ZZ3317N3068W (dump truck) Max. speed 75 ABS none Cab seating capacity 2 Steering steering wheel Leaf springs left 14 right 13 / left 14 right 13 / 12, 11 / 11 / 12, 11 / 11 / -, 4 / 4 / -

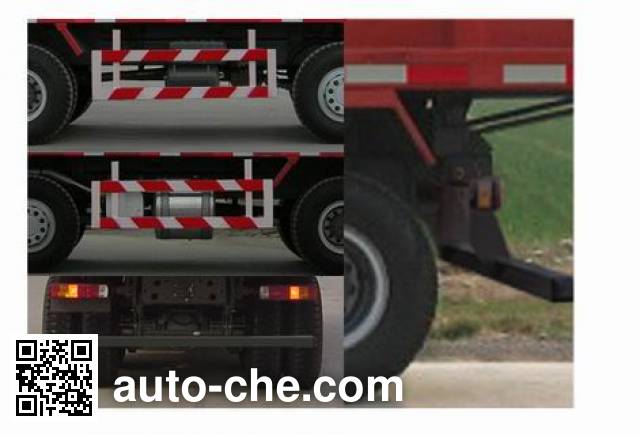

Additional Information Container after unloading dump mode, the car optional green container with lid, cover the quality of 320kg (including the curb weight). Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.(Note: possible inaccuracies)

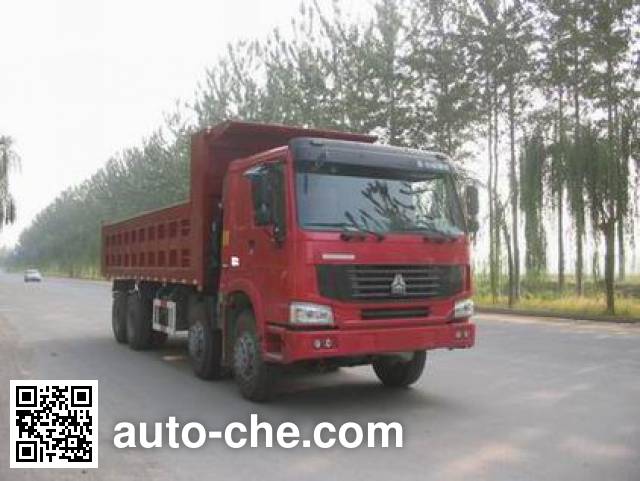

Photo gallery of the China dump truck Sinotruk Howo ZZ3317N3068W See Also Sinotruk Howo ZZ3257N3847C1 (dump truck)
