Sinotruk Howo ZZ3317N3067N1 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck ZZ3317N3067N1

ZZ3317N3067N1

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3317N3067N1 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3317N3067N1 chassis. Cab seating capacity is  2, curb weight is of the China dump truck 14980 kg, diesel fuel, gross vehicle weight is 31000 kg, tires are 11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 18PR, cargo body is 6500 × 1250 × 2300 mm, engine: D10.34-31 / D10.38-30 / WD615.95E / WD615.96E, max. speed is 78 km/h, environmental standard is National III / Euro 3, wheelbase is 1950+3025+1350 mm, without ABS, rated capacity is 15890 kg.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3317N3067N1
Vehicle typeDump truck (tipper truck)
VIN
  • LZZ5EXNB×××××××××
  • LZZ5EXSB×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3317N3067N1

Engine of the China dump truck Sinotruk Howo ZZ3317N3067N1

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1D10.34-319726 cc249 kW (339 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2D10.38-309726 cc279 kW (380 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.95E9726 cc247 kW (336 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.96E9726 cc276 kW (376 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3317N3067N1

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)9610
Overall width (mm)2496
Overall height (mm)3490
Cargo Body Dimensions
Cargo body length (mm)6500
Cargo body width (mm)1250
Cargo body height (mm)2300
Weights, Ground Pressure and Capacity
Rated capacity (kg)15890
Curb weight of the China dump truck (kg)14980
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.06
Axle load distribution (kg)6300/7000/17700  (tandem axle)
Wheel Base and Track
Wheelbase (mm)1950+3025+1350
Front track (mm)2022/2022, 2041/2041
Rear track (mm)1830/1830
Front and Rear Overhang
Front overhang (mm)1540
Rear overhang (mm)1745
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)27

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Howo ZZ3317N3067N1
Number of axles4
Number of tires12
Tires dimension11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 18PR

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3317N3067N1 (dump truck)
Max. speed78
ABSnone
Cab seating capacity2
Steeringsteering wheel
Leaf springs11 / 11 / 12

Additional Information

After unloading the car dump way. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

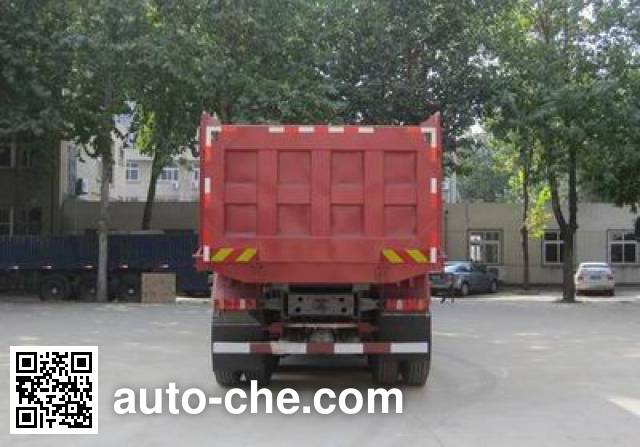

Photo gallery of the China dump truck Sinotruk Howo ZZ3317N3067N1
