howo tipper / dump truck

Sinotruk Howo ZZ3317M386GE1L dump truck chassis manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck chassis ZZ3317M386GE1L

ZZ3317M386GE1L

Sinotruk Howo Chinese dump truck chassis (tipper chassis) ZZ3317M386GE1L manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump truck chassis (tipper chassis)). Gross vehicle weight is 31000 kg, wheelbase is 1800+3800+1350 mm, with ABS, engine: MT07.26-50 / MT07.29-50, max. speed is 80 km/h, cab seating capacity is  2, tires are 295/80R22.5, 12R22.5, 11.00R20, 11.00-20, 10.00R20, 10.00-20, curb weight is of the China truck chassis 9340 kg, environmental standard is GB17691-2005 National V / Euro 5, GB18285-2005, GB11340-2005, liquefied natural gas.

Technical Specifications of the China truck chassis Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3317M386GE1L
Vehicle typeDump truck chassis (tipper chassis)
VIN
  • LZZ1EX3D×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.

Engine of the China truck chassis Sinotruk Howo ZZ3317M386GE1L

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1MT07.26-506870 cc191 kW (260 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2MT07.29-506870 cc216 kW (294 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fuelliquefied natural gas
Environmental standards complianceGB17691-2005 National V / Euro 5, GB18285-2005, GB11340-2005

Dimensions and Weights of the China truck chassis Sinotruk Howo ZZ3317M386GE1L

Dimensions and Weight Specifications of the China truck chassis
Overall Dimensions of the China truck chassis
Overall length (mm)9195
Overall width (mm)2496
Overall height (mm)3105
Weights, Ground Pressure
Curb weight of the China truck chassis (kg)9340
Gross vehicle weight (kg)31000
Axle load distribution (kg)6500/7000/17500  (tandem axle)
Wheel Base and Track
Wheelbase (mm)1800+3800+1350
Front track (mm)2020/2020
Rear track (mm)1830/1830
Front and Rear Overhang
Front overhang (mm)1430
Rear overhang (mm)815
Angle of Approach and Departure
Angle of approach (deg.)19
Angle of departure (deg.)60

Wheels and Tires

Tires and Wheels of the China truck chassis Sinotruk Howo ZZ3317M386GE1L
Number of axles4
Number of tires12
Tires dimension295/80R22.5, 12R22.5, 11.00R20, 11.00-20, 10.00R20, 10.00-20

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3317M386GE1L (dump truck chassis)
Max. speed80
ABShave
Cab seating capacity2
Steeringsteering wheel
Leaf springs11 / 11 / 10, 3 / 3 / 10, 3 / 3 / 5, 3 / 3 / 4, 11 / 11 / -, 3 / 3 / -

Additional Information

Common optional cab. Optional sun shade, no optional rear window. When the optional MT07.26-50 and MT07.29-50 engine net power, respectively 188kW and 213kW. ABS system model 4460046300, producers of WABCO Vehicle Control Systems (China) Co., Ltd.
(Note: possible inaccuracies)

Photo gallery of the China truck chassis Sinotruk Howo ZZ3317M386GE1L

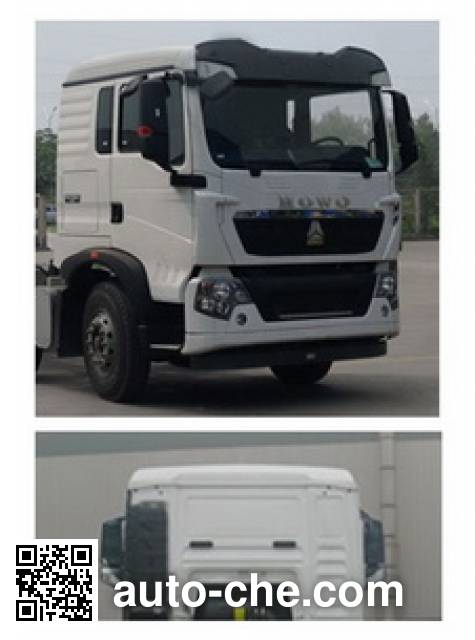

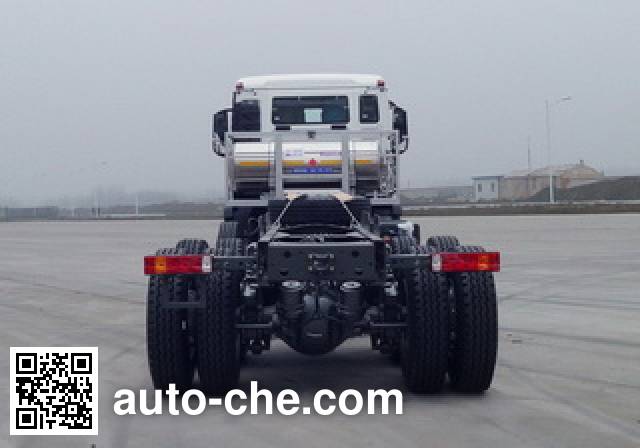

Sinotruk Howo dump truck chassis ZZ3317M386GE1L Sinotruk Howo dump truck chassis ZZ3317M386GE1L Sinotruk Howo dump truck chassis ZZ3317M386GE1L
