howo tipper / dump truck

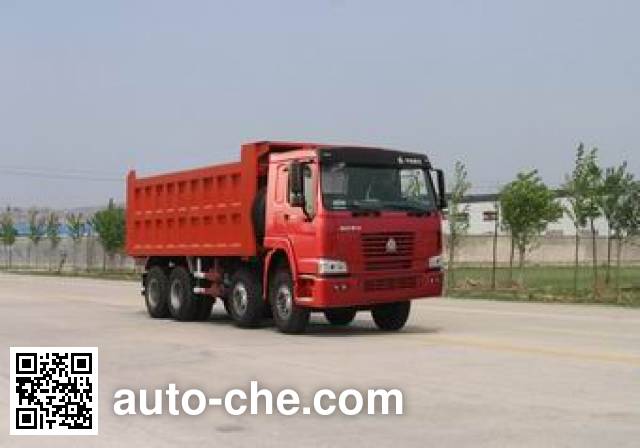

Sinotruk Howo ZZ3317M3267W dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck ZZ3317M3267W

ZZ3317M3267W

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3317M3267W manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3317M3267W chassis. Engine: WD615.87 / WD615.87 / WD615.62, gross vehicle weight is 31000 kg, curb weight is of the China dump truck 14730, 15030 kg, cab seating capacity is  2, cargo body is 6800/7000 × 2300 × 1200/1500 mm, max. speed is 75 km/h, wheelbase is 1800+3200+1350 mm.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3317M3267W
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3317M3267W

Engine of the China dump truck Sinotruk Howo ZZ3317M3267W

Engine Specifications of the China dump truck
Engine ModelWD615.87 / WD615.87 / WD615.62
Engine displacement (cc)9726 / 9726 / 9726
Engine power (kW)213 / 213 / 196

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3317M3267W

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)9745/9945
Overall width (mm)2496
Overall height (mm)3170/3386
Cargo Body Dimensions
Cargo body length (mm)6800/7000
Cargo body width (mm)2300
Cargo body height (mm)1200/1500
Weights, Ground Pressure
Curb weight of the China dump truck (kg)14730, 15030
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.06
Axle load distribution (kg)6500/7000/17500  (tandem axle)
Wheel Base
Wheelbase (mm)1800+3200+1350
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)1895, 2095
Angle of Approach and Departure
Angle of approach (deg.)19
Angle of departure (deg.)18

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Howo ZZ3317M3267W
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3317M3267W (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional green container with lid, cover the quality of 370kg.
(Note: possible inaccuracies)
