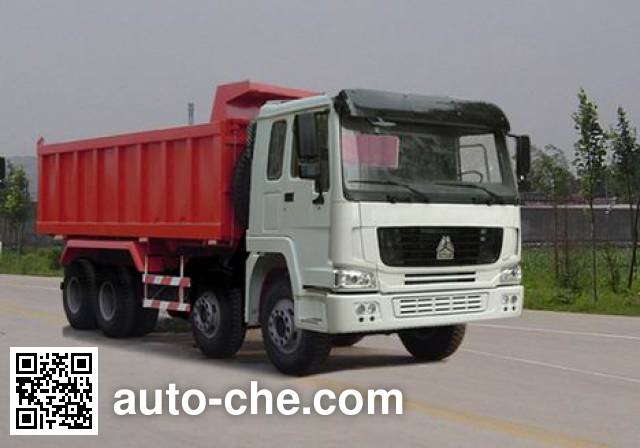

Sinotruk Howo ZZ3317M3261W dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck ZZ3317M3261W

ZZ3317M3261W

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3317M3261W manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3317M3261W chassis. Cargo body is 7500 × 2326 × 1400 mm, engine: WD615.62 / WD615.87, wheelbase is 1800+3200+1350, 1800+3175+1400 mm, curb weight is of the China dump truck 15200 kg, gross vehicle weight is 31000 kg, cab seating capacity is  2, total mass of trailer is 7400, 10800 kg, max. speed is 90, 102 km/h.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3317M3261W
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3317M3261W

Engine of the China dump truck Sinotruk Howo ZZ3317M3261W

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.87
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 213

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3317M3261W

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)10207
Overall width (mm)2496
Overall height (mm)3115
Cargo Body Dimensions
Cargo body length (mm)7500
Cargo body width (mm)2326
Cargo body height (mm)1400
Weights
Curb weight of the China dump truck (kg)15200
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.04
Total mass of trailer (kg)7400, 10800
Wheel Base
Wheelbase (mm)1800+3200+1350, 1800+3175+1400
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)2357, 2332
Angle of Approach and Departure
Angle of approach (deg.)16
Angle of departure (deg.)18

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Howo ZZ3317M3261W
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3317M3261W (dump truck)
Max. speed90, 102
Cab seating capacity2
Steeringsteering wheel

Additional Information

Quasi-total mass of trailer and engine parameters correspond to the parameters. The car should be installed body reflective logo on the side and rear.
(Note: possible inaccuracies)
