howo tipper / dump truck

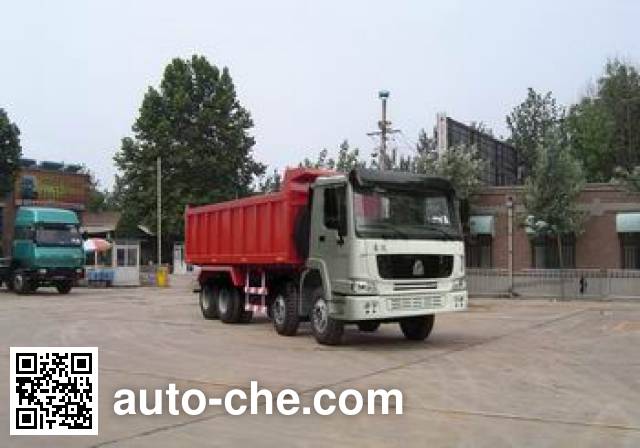

Sinotruk Howo ZZ3317M3061 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck ZZ3317M3061

ZZ3317M3061

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3317M3061 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3317M3061 chassis. Cargo body is 7000 × 2300 × 1000/1200/1300/1400/1500 mm, engine: WD615.61A / WD615.61A / WD615.67 / WD615.67 / WD615.62 / WD615.62 / WD615.87 / WD615.87, curb weight is of the China dump truck 15030, 15290, 15430 kg, cab seating capacity is  2, wheelbase is 1800+3000+1350 mm, max. speed is 75 km/h, gross vehicle weight is 31000 kg.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3317M3061
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3317M3061

Engine of the China dump truck Sinotruk Howo ZZ3317M3061

Engine Specifications of the China dump truck
Engine ModelWD615.61A / WD615.61A / WD615.67 / WD615.67 / WD615.62 / WD615.62 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726
Engine power (kW)193 / 193 / 206 / 206 / 196 / 196 / 213 / 213

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3317M3061

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)9730
Overall width (mm)2496
Overall height (mm)3237/3453
Cargo Body Dimensions
Cargo body length (mm)7000
Cargo body width (mm)2300
Cargo body height (mm)1000/1200/1300/1400/1500
Weights
Curb weight of the China dump truck (kg)15030, 15290, 15430
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.01
Wheel Base
Wheelbase (mm)1800+3000+1350
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)2080
Angle of Approach and Departure
Angle of approach (deg.)19
Angle of departure (deg.)22

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Howo ZZ3317M3061
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3317M3061 (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional environmental Compartment Lid, cover quality 380kg.Rated weight (kg) also for: 15310,15180; Curb weight (kg) also for: 15560,15690 this product since October 1, 2004, as the basis for a vehicle registered products should be in the rear of the car. installation of retro-reflective markings.
(Note: possible inaccuracies)
