howo tipper / dump truck

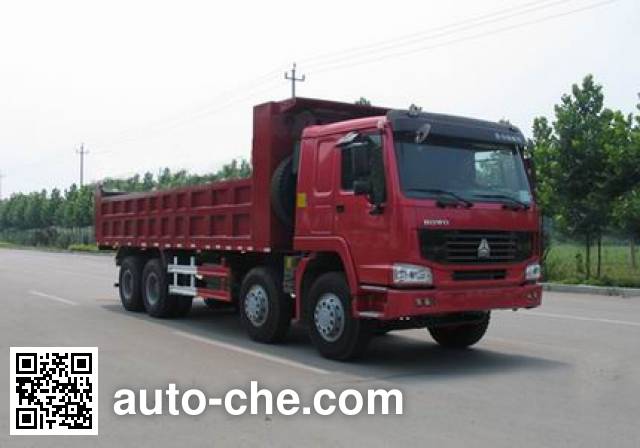

Sinotruk Howo ZZ3267N3867A dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck ZZ3267N3867A

ZZ3267N3867A

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3267N3867A manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3267N3867W chassis. Max. speed is 75 km/h, cab seating capacity is  2, curb weight is of the China dump truck 12890 kg, engine: WD615.69 / WD615.69 / WD615.47, cargo body is 7800 × 2300 × 900 mm, wheelbase is 1800+3800+1350 mm, gross vehicle weight is 26000 kg.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3267N3867A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3267N3867W

Engine of the China dump truck Sinotruk Howo ZZ3267N3867A

Engine Specifications of the China dump truck
Engine ModelWD615.69 / WD615.69 / WD615.47
Engine displacement (cc)9726 / 9726 / 9726
Engine power (kW)247 / 247 / 273

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3267N3867A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)10745
Overall width (mm)2496
Overall height (mm)3190
Cargo Body Dimensions
Cargo body length (mm)7800
Cargo body width (mm)2300
Cargo body height (mm)900
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12890
Gross vehicle weight (kg)26000
Load factor (payload to weight ratio)1.01
Axle load distribution (kg)5300/6000/14700  (tandem axle)
Wheel Base
Wheelbase (mm)1800+3800+1350
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)2295
Angle of Approach and Departure
Angle of approach (deg.)19
Angle of departure (deg.)17

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Howo ZZ3267N3867A
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3267N3867A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

Only two types of optional car chassis China heavy truck engines.
(Note: possible inaccuracies)
