howo tipper / dump truck

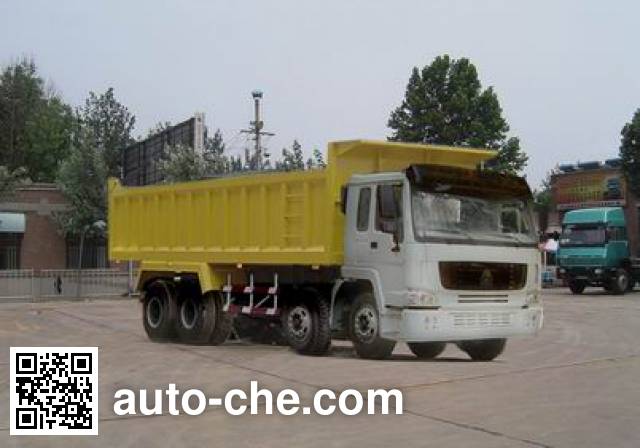

Sinotruk Howo ZZ3267N3067W dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck ZZ3267N3067W

ZZ3267N3067W

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3267N3067W manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3267N3067W chassis. Curb weight is of the China dump truck 12840, 13000 kg, cab seating capacity is  2, engine: WD615.69 / WD615.69 / WD615.47, gross vehicle weight is 26000 kg, max. speed is 75 km/h, cargo body is 6500 × 2300 × 1200/1500 mm, wheelbase is 1800+3000+1350 mm.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3267N3067W
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3267N3067W

Engine of the China dump truck Sinotruk Howo ZZ3267N3067W

Engine Specifications of the China dump truck
Engine ModelWD615.69 / WD615.69 / WD615.47
Engine displacement (cc)9726 / 9726 / 9726
Engine power (kW)247 / 247 / 273

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3267N3067W

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)9445
Overall width (mm)2496
Overall height (mm)3190/3406
Cargo Body Dimensions
Cargo body length (mm)6500
Cargo body width (mm)2300
Cargo body height (mm)1200/1500
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12840, 13000
Gross vehicle weight (kg)26000
Load factor (payload to weight ratio)1.00
Axle load distribution (kg)5500/6000/14500  (tandem axle)
Wheel Base
Wheelbase (mm)1800+3000+1350
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)1795
Angle of Approach and Departure
Angle of approach (deg.)19
Angle of departure (deg.)26

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Howo ZZ3267N3067W
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3267N3067W (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional green container with lid, cover the quality of 320kg.
(Note: possible inaccuracies)
