Howo, Sitrak, CNHTC, Hania, Homan dump trucks, tractors and cargo trucks (China). Unofficial reference guide

howo tipper / dump truck

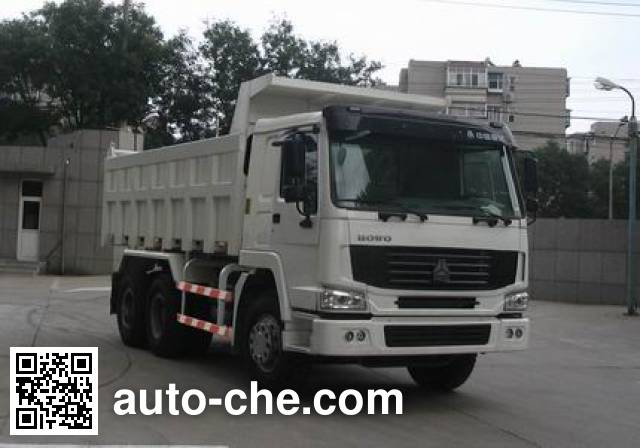

Sinotruk Howo ZZ3257N3647A dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck ZZ3257N3647A

ZZ3257N3647A

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3257N3647A manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3257N3647A chassis. Cargo body is 5400 × 2300 × 1200 mm, engine: WD615.69 / WD615.47, gross vehicle weight is 25000 kg, cab seating capacity is  2, max. speed is 75 km/h, wheelbase is 3625+1350 mm, curb weight is of the China dump truck 12250, 12420 kg.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3257N3647A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3257N3647A

Engine of the China dump truck Sinotruk Howo ZZ3257N3647A

Engine Specifications of the China dump truck
Engine ModelWD615.69 / WD615.47
Engine displacement (cc)9726 / 9726
Engine power (kW)247 / 273

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3257N3647A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8145
Overall width (mm)2496
Overall height (mm)3170
Cargo Body Dimensions
Cargo body length (mm)5400
Cargo body width (mm)2300
Cargo body height (mm)1200
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12250, 12420
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.04, 1.01
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)3625+1350
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)1670
Angle of Approach and Departure
Angle of approach (deg.)19
Angle of departure (deg.)26

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Howo ZZ3257N3647A
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3257N3647A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

Curb weight were without cover and quality time with the cap. The car optional green container with lid, cover the quality of 170kg.
(Note: possible inaccuracies)
