howo tipper / dump truck

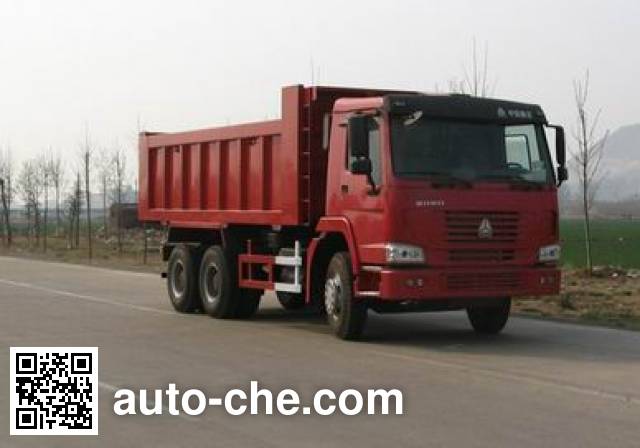

Sinotruk Howo ZZ3257M3841B dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck ZZ3257M3841B

ZZ3257M3841B

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3257M3841B manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3257M3841 chassis. Gross vehicle weight is 25000 kg, cargo body is 6000 × 2300 × 1000/1200/1300/1400/1500 mm, engine: WD615.61A / WD615.61A / WD615.67 / WD615.67 / WD615.62 / WD615.62 / WD615.87 / WD615.87, cab seating capacity is  2, wheelbase is 3825+1350 mm, curb weight is of the China dump truck 12100, 12250, 12330, 12410 kg, max. speed is 75 km/h.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3257M3841B
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3257M3841

Engine of the China dump truck Sinotruk Howo ZZ3257M3841B

Engine Specifications of the China dump truck
Engine ModelWD615.61A / WD615.61A / WD615.67 / WD615.67 / WD615.62 / WD615.62 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726
Engine power (kW)193 / 193 / 206 / 206 / 196 / 196 / 213 / 213

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3257M3841B

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8614
Overall width (mm)2496
Overall height (mm)3170/3386
Cargo Body Dimensions
Cargo body length (mm)6000
Cargo body width (mm)2300
Cargo body height (mm)1000/1200/1300/1400/1500
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12100, 12250, 12330, 12410
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.00
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)3825+1350
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)1939
Angle of Approach and Departure
Angle of approach (deg.)19
Angle of departure (deg.)23

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Howo ZZ3257M3841B
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3257M3841B (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The only optional car chassis WD615.62 and WD615.87 engines.The car optional environmental lidded containers, cargo box cover quality 320kg. Curb weight but also for 12490kg. Rated quality but also for 12460,12380 kg.
(Note: possible inaccuracies)
